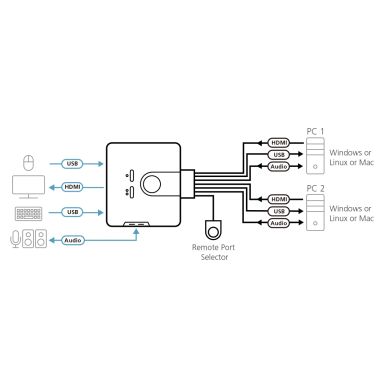

Aten CS692 KVM switch Black
In Stock
|
£68.53
£82.24 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type
USB Type-A
Number of microphone inputs
3
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
Audio connections
Yes
Headphone outputs
3
HDMI ports quantity
2
USB 2.0 Type-A hub ports quantity
4
Performance
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
3,5,10,20 s
Technical details
Product colour
Black
Rack mounting
No
Scan interval
3,5,10,20 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Design
Product colour
Black
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Plastic
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
0.72 W
Input voltage
5 V
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
82.4 mm
Depth
66.5 mm
Height
25.2 mm
Weight
409 g
Package width
70 mm
Package depth
163 mm
Package height
235 mm
Package weight
550 g
Packaging data
Package width
70 mm
Package depth
163 mm
Package height
235 mm
Package weight
550 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Logistics data
Master (outer) case width
395 mm
Master (outer) case length
405 mm
Master (outer) case height
182 mm
Master (outer) case gross weight
6.13 kg
Products per master (outer) case
10 pc(s)
Master (outer) case net weight
4.09 kg
Harmonized System (HS) code
85176200
Aten CS692 KVM switch Black
| Length | 16.3 cm |
| Width | 7 cm |
| Height | 23.5 cm |
| Weight | 0.55 kgs |
