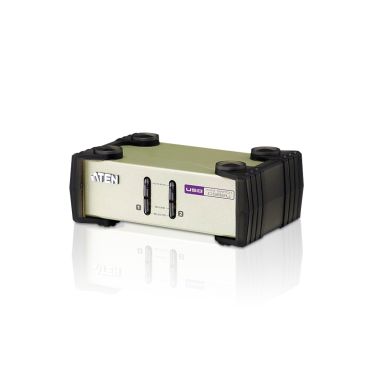

Aten CS82U KVM switch
In Stock
|
£63.42
£76.10 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console USB ports quantity
2
Console ports
USB A, VGA (D-Sub)
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
VGA (D-Sub) ports quantity
2
DC-in jack
Yes
Performance
DDC2B support
Yes
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Scan interval
3,5,10,20 s
Technical details
Product colour
Light grey
Rack mounting
No
Scan interval
3,5,10,20 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Design
Product colour
Light grey
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
0.72 W
Input voltage
5 V
Video
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
140 mm
Height
55.5 mm
Weight
869 g
Package width
59 mm
Package depth
239 mm
Package height
175 mm
Package weight
981 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
175 mm
Package weight
981 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Logistics data
Master (outer) case width
328 mm
Master (outer) case length
497 mm
Master (outer) case height
196 mm
Master (outer) case gross weight
10.4 kg
Products per master (outer) case
10 pc(s)
Master (outer) case net weight
8.69 kg
Harmonized System (HS) code
85176200
Aten CS82U KVM switch
| Length | 23.9 cm |
| Width | 5.9 cm |
| Height | 17.5 cm |
| Weight | 0.98 kgs |
