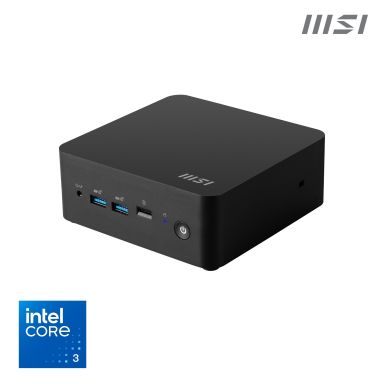

MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), UHD Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
In Stock
|
$373.39
$448.07 (Inc. VAT)
Motherboard
Motherboard form factor
NUC
Number of processors supported
1
Motherboard chipset
Intel SoC
Processor
Built-in processor
Yes
Processor model
100U
Processor threads
8
Processor cores
6
Processor family
Intel Core 3
Number of processors supported
1
Motherboard chipset
Intel SoC
Processor manufacturer
Intel
Processor cache
10 MB
Performance cores
2
Efficient cores
4
Performance-core Max Turbo Frequency
4.7 GHz
Efficient-core Max Turbo Frequency
3.3 GHz
Performance-core base frequency
1.2 GHz
Efficient-core base frequency
0.9 GHz
Processor generation
Intel Core (Series 1)
Memory
Memory slots type
SO-DIMM
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
5200 MHz
Maximum internal memory
64 GB
Video
On-board graphics card
Yes
Graphics card family
Intel
Storage
Supported storage drive types
SSD
Storage drive sizes supported
2.5,M.2
Storage drive interface
M.2, Serial ATA, Serial ATA II, Serial ATA III
Number of storage drives supported
3
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
SSD form factor
M.2
NVMe
Yes
Graphics
Number of displays supported
4
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Audio
Built-in speaker(s)
No
Network
Near Field Communication (NFC)
No
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel I226-V
Copper ethernet cabling technology
2.5GBASE-T
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header
No
Consumer infrared headers
No
Combo headphone/mic port
Yes
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB charging
Yes
TV-out
No
HDMI version
1.4b/2.1
S/PDIF out port
No
Microphone in
No
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
2
DVI port
No
CardBus PCMCIA slot type
No
Thunderbolt 4 ports quantity
2
Expansion slots
Number of M.2 (M) slots
2
Design
Motherboard form factor
NUC
VESA mounting
Yes
Product type
Mini PC barebone
Housing material
Plastic
Cable lock slot type
Kensington
Cable lock slot
Yes
On/off switch
Yes
Panel mounting interface
75 x 75,100 x 100 mm
LED indicators
System
Cooling type
Active
Product colour
Black
Chassis type
0.84L sized PC
Performance
Motherboard form factor
NUC
Windows operating systems supported
Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
Number of displays supported
4
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Operating system installed
No
Number of processors supported
1
Motherboard chipset
Intel SoC
Colour
Product colour
Black
Technical details
Cable lock slot type
Kensington
Cable lock slot
Yes
Panel mounting interface
75 x 75,100 x 100 mm
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Quick start guide
Yes
Processor cores
6
Cooling type
Active
Chassis type
0.84L sized PC
Introduction year
2024
Introduction month
July
Warranty period
3 year(s)
Packaging data
Power cord included
Yes
Drivers included
Yes
AC adapter included
Yes
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.45 g
Indication
LED indicators
System
Software
Windows operating systems supported
Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
Operating system installed
No
Management features
On/off switch
Yes
Features
Number of displays supported
4
Logistics data
Country of origin
China
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
External AC adapter
Power supply
120 W
Number of power supply units
1
Weight & dimensions
Width
132.5 mm
Depth
135.6 mm
Height
50.1 mm
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.45 g
Weight
0.625 g
Packaging content
Display included
No
Power cord included
Yes
Drivers included
Yes
AC adapter included
Yes
Mouse included
No
Quick start guide
Yes
Keyboard included
No
Other features
Chassis type
0.84L sized PC
Country of origin
China
Introduction year
2024
Introduction month
July
Warranty period
3 year(s)
MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), UHD Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
