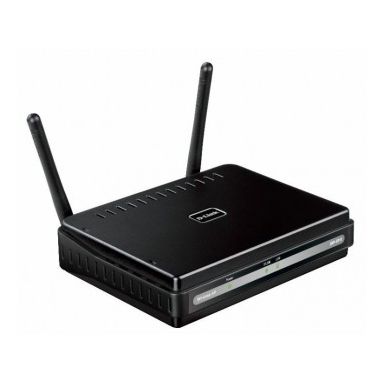

D-Link DAP-2310 300 Mbit/s Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
300 Mbit/s
Performance
2.4 GHz
Yes
Frequency band
2.4 - 2.485 GHz
Web-based management
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates
10,100,1000 Mbit/s
Certification
FCC, CE, WiFi
Maximum data transfer rate
300 Mbit/s
Wireless LAN features
Frequency band
2.4 - 2.485 GHz
Wireless technology
802.11 b/g
Network
Internal
No
Networking standards
IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Networking features
Gigabit Ethernet
Management features
VLAN support
Yes
Quality of Service (QoS) support
Yes
Web-based management
Yes
Certificates
Certification
FCC, CE, WiFi
Features
2.4 GHz
Yes
Frequency band
2.4 - 2.485 GHz
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
300 Mbit/s
Security
Security algorithms
128-bit WEP, 64-bit WEP, 802.1x RADIUS, HTTPS, SSH, SSID, WDS, WPA, WPA2
MAC address filtering
Yes
Protocols
Management protocols
SNMPv1,v2c, v3
Ports & interfaces
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (typical)
8 W
Power over Ethernet (PoE)
Yes
Output power description
5V DC, 2A
Design
Internal
No
LED indicators
LAN, Power
Certification
FCC, CE, WiFi
Antenna
Antennas quantity
2
Antenna gain level (max)
2 dBi
Antenna features
Detachable antenna
Technical details
Transmit power range
17 - 25 dBmW
Operating temperature (T-T)
32 - 104 °F
Shipping (inner) case width
24.5 cm
Shipping (inner) case net weight
3.6 kg
Shipping (inner) case length
40 cm
Shipping (inner) case height
31.7 cm
Products per shipping (inner) case
10 pc(s)
Products per pallet (sea)
720 pc(s)
Products per pallet (air)
720 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
2.04 m
Pallet height (air)
2.04 m
Pallet gross weight (sea)
484.3 kg
Pallet gross weight (air)
484.3 kg
Master (outer) cases per pallet (sea)
72 pc(s)
Master (outer) cases per pallet (air)
72 pc(s)
Shipping (inner) case gross weight
6.47 kg
Harmonized System (HS) code
85176990
Indication
Power LED
Yes
LED indicators
LAN, Power
Weight & dimensions
Dimensions (WxDxH)
148 x 111 x 28 mm
Weight
238 g
Package width
188 mm
Package depth
230 mm
Package height
55 mm
Package weight
578 g
Packaging data
Package width
188 mm
Package depth
230 mm
Package height
55 mm
Package weight
578 g
Other features
Wireless technology
802.11 b/g
Transmit power range
17 - 25 dBmW
Power LED
Yes
Operating temperature (T-T)
32 - 104 °F
Networking features
Gigabit Ethernet
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Logistics data
Harmonized System (HS) code
85176990
D-Link DAP-2310 300 Mbit/s Power over Ethernet (PoE)
