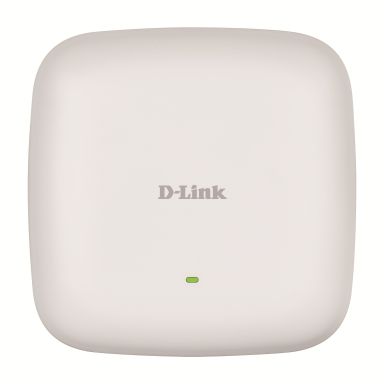

D-Link Wireless AC2300 Wave 2 Dual‑Band PoE Access Point

Ethernet LAN data rates

10-100-1000 Mbit/s

Maximum data transfer rate

1700 Mbit/s

2.4 GHz

Yes

5 GHz

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Auto Wireless Distribution System (WDS)

Yes

Frequency band

2.4 - 5 GHz

Web-based management

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3ab-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u

Ethernet LAN data rates

10-100-1000 Mbit/s

Certification

FCC- CE- UL

Maximum data transfer rate

1700 Mbit/s

MIMO type

Multi User MIMO

MIMO

Yes

Mean time between failures (MTBF)

341897 h

Remote Authentication Dial-In User Service (RADIUS)

Yes

Frequency band

2.4 - 5 GHz

Networking standards

IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3ab-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u

VLAN support

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Certification

FCC- CE- UL

2.4 GHz

Yes

5 GHz

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Frequency band

2.4 - 5 GHz

VLAN support

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3ab-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u

Ethernet LAN data rates

10-100-1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Maximum data transfer rate

1700 Mbit/s

MIMO type

Multi User MIMO

MIMO

Yes

Mean time between failures (MTBF)

341897 h

Maximum data transfer rate (2.4 GHz)

600 Mbit/s

Maximum data transfer rate (5 GHz)

1700 Mbit/s

Virtual LAN features

Multiple VXLAN (MUX VLAN)

Number of SSID supported

16

Auto Wireless Distribution System (WDS)

Yes

Security algorithms

64-bit WEP-128-bit WEP-WPA2

MAC address filtering

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes

Service Set Identifier (SSID) features

SSID broadcast

Management protocols

Telnet- SSH

Ethernet LAN (RJ-45) ports

2

Cabling technology

10/100/1000Base-T(X)

Power consumption (max)

15.5 W

Power over Ethernet (PoE)

Yes

Input voltage

12 V

Input current

2.5 A

Placement

Ceiling- Wall

Product colour

White

LED indicators

Power- Status

Certification

FCC- CE- UL

Antenna type

Internal

Antenna gain level (max)

4.8 dBi

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 65 °C

Storage relative humidity (H-H)

5 - 95%

LED indicators

Power- Status

Width

190 mm

Depth

190 mm

Weight

551.6 g

Height

43.7 mm
