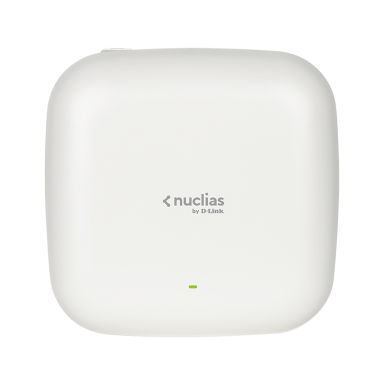

D-Link AX1800 Wi-Fi 6 Cloud-Managed Access Point
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10-100-1000 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Flow control support
Yes
Firmware upgradeable
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11ax-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3ab-IEEE 802.3at-IEEE 802.3az-IEEE 802.3i-IEEE 802.3u-IEEE 802.3x
Ethernet LAN data rates
10-100-1000 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Network
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11ax-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3ab-IEEE 802.3at-IEEE 802.3az-IEEE 802.3i-IEEE 802.3u-IEEE 802.3x
Features
2.4 GHz
Yes
5 GHz
Yes
Flow control support
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11ax-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3ab-IEEE 802.3at-IEEE 802.3az-IEEE 802.3i-IEEE 802.3u-IEEE 802.3x
Ethernet LAN data rates
10-100-1000 Mbit/s
Transmitting power (FCC)
22 dBm
Transmitting power (CE)
23 dBm
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Maximum data transfer rate (5 GHz)
1200 Mbit/s
Security
Number of SSID supported
16
Security algorithms
SSID-WPA2-WPA3-Enterprise
MAC address filtering
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Management features
Firmware upgradeable
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (typical)
14 W
Power supply
16 W
Power over Ethernet (PoE)
Yes
Input voltage
12 V
Input current
1.5 A
Design
Placement
Ceiling- Wall
Product colour
White
LED indicators
Power
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
4 dBi
Antenna direction type
Omni-directional
Technical details
Firmware upgradeable
Yes
Sustainability certificates
CE
Operational conditions
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Indication
LED indicators
Power
Weight & dimensions
Width
170 mm
Depth
42.2 mm
Weight
484 g
Height
170 mm
Packaging data
Mounting kit
Yes
Packaging content
Mounting kit
Yes
D-Link AX1800 Wi-Fi 6 Cloud-Managed Access Point
