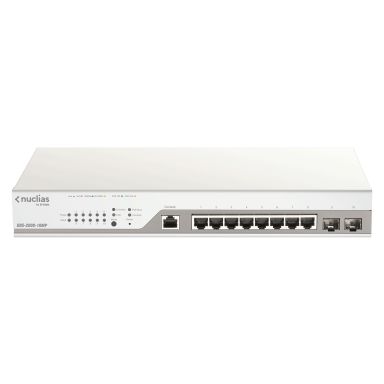

D-Link DBS-2000-10MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Out of Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3ad, IEEE 802.3at
Spanning tree protocol
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
No
Performance
Packet buffer memory
4.1 MB
Processor frequency
500 MHz
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
1274005 h
Internal memory
256 MB
Flash memory
32 MB
Built-in processor
Yes
Harmonized System (HS) code
85176990
Technical details
Product colour
Grey
Processor frequency
500 MHz
Mean time between failures (MTBF)
1274005 h
Rack mounting
Yes
Built-in processor
Yes
Shipping (inner) case width
29.4 cm
Shipping (inner) case net weight
10.2 kg
Shipping (inner) case length
41.6 cm
Shipping (inner) case height
34.9 cm
Products per shipping (inner) case
3 pc(s)
Products per pallet (sea)
120 pc(s)
Products per pallet (air)
72 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
188 cm
Pallet height (air)
118.2 cm
Pallet gross weight (sea)
458.4 kg
Pallet gross weight (air)
282.5 kg
Master (outer) cases per pallet (sea)
40 pc(s)
Master (outer) cases per pallet (air)
24 pc(s)
Shipping (inner) case gross weight
11 kg
Management features
Switch type
Managed
Web-based management
Yes
Switch layer
L2
Data transmission
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Security
Security algorithms
WPA3, WPA, WPA2
IGMP snooping
Yes
Memory
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Design
Product colour
Grey
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
152.3 W
AC input voltage
100 - 240 V
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 1500 m
Heat dissipation
519.51 BTU/h
Weight & dimensions
Width
330 mm
Depth
180 mm
Height
44 mm
Weight
1.77 kg
Packaging data
Package width
319 mm
Package depth
400 mm
Package height
91 mm
Package weight
3.39 kg
Logistics data
Harmonized System (HS) code
85176990
D-Link DBS-2000-10MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
| Length | 40 cm |
| Width | 31.9 cm |
| Height | 9.1 cm |
| Weight | 3.39 kgs |
