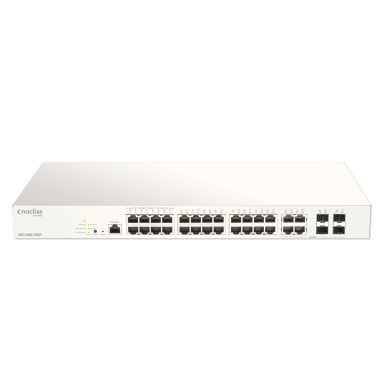

D-Link DBS-2000-28MP network switch Managed Gigabit Ethernet (10/100/1000) Grey
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
4
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3adIEEE 802.3at
Spanning tree protocol
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
10G support
No
Performance
Packet buffer memory
4.1 MB
Processor frequency
500 MHz
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
277967 h
Internal memory
256 MB
Flash memory
32 MB
Built-in processor
Yes
Technical details
Product colour
Grey
Processor frequency
500 MHz
Mean time between failures (MTBF)
277967 h
Built-in processor
Yes
Shipping (inner) case width
11.6" (29.5 cm)
Shipping (inner) case net weight
34 lbs (15.4 kg)
Shipping (inner) case length
21.2" (53.9 cm)
Shipping (inner) case height
15.5" (39.3 cm)
Quantity per shipping (inner) case
3 pcs
Shipping (inner) case gross weight
35.7 lbs (16.2 kg)
Quantity per pallet (sea)
120 pcs
Quantity per pallet (air)
72 pcs
Pallet width
47.2" (120 cm)
Pallet length
43.3" (110 cm)
Pallet height (sea)
82.7" (2.1 m)
Pallet height (air)
51.7" (131.4 cm)
Pallet gross weight (sea)
1477.1 lbs (670 kg)
Pallet gross weight (air)
902.8 lbs (409.5 kg)
Number of cartons per pallet (sea)
40
Number of cartons per pallet (air)
24
Management features
Switch type
Managed
Web-based management
Yes
Data transmission
Packet buffer memory
4.1 MB
Switching capacity
56 Gbit/s
Forwarding rate
41.7 Mpps
Security
Security algorithms
WPAWPA2
IGMP snooping
Yes
Memory
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Design
Product colour
Grey
LED indicators
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
446.1 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 59055.1" (0 - 1500 m)
Heat dissipation
1521.99 BTU/h
Weight & dimensions
Width
17.3" (440 mm)
Depth
9.84" (250 mm)
Height
1.73" (44 mm)
Weight
8.69 lbs (3.94 kg)
D-Link DBS-2000-28MP network switch Managed Gigabit Ethernet (10/100/1000) Grey
| Length | 25.00 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 3.940000 kgs |
