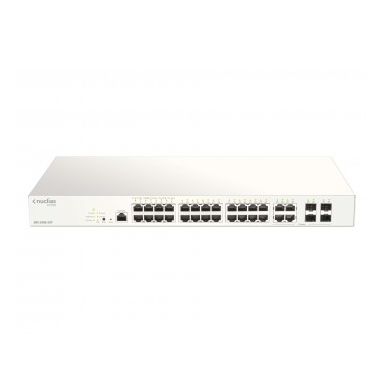

D-Link DBS-2000-28P network switch Grey Power over Ethernet (PoE)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
| Networking standards | IEEE 802.3adIEEE 802.3at |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Processor frequency | 500 MHz |
| Memory type | DDR3-SDRAM |
| Mean time between failures (MTBF) | 469262 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Technical details | |
| Product colour | Grey |
| Processor frequency | 500 MHz |
| Mean time between failures (MTBF) | 469262 h |
| Built-in processor | Yes |
| Shipping (inner) case width | 11.6" (29.5 cm) |
| Shipping (inner) case net weight | 33.3 lbs (15.1 kg) |
| Shipping (inner) case length | 21.2" (53.9 cm) |
| Shipping (inner) case height | 15.5" (39.3 cm) |
| Quantity per shipping (inner) case | 3 pcs |
| Shipping (inner) case gross weight | 35.3 lbs (16 kg) |
| Quantity per pallet (sea) | 120 pcs |
| Quantity per pallet (air) | 72 pcs |
| Pallet width | 47.2" (120 cm) |
| Pallet length | 43.3" (110 cm) |
| Pallet height (sea) | 82.7" (2.1 m) |
| Pallet height (air) | 51.7" (131.4 cm) |
| Pallet gross weight (sea) | 1455.1 lbs (660 kg) |
| Pallet gross weight (air) | 889.6 lbs (403.5 kg) |
| Number of cartons per pallet (sea) | 40 |
| Number of cartons per pallet (air) | 24 |
| Data transmission | |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Security | |
| Security algorithms | WPAWPA2 |
| IGMP snooping | Yes |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 263.9 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 193 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 59055.1" (0 - 1500 m) |
| Heat dissipation | 900.36 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 9.84" (250 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.27 lbs (3.75 kg) |
D-Link DBS-2000-28P network switch Grey Power over Ethernet (PoE)
| Length | 20.5 cm |
| Width | 14.37 cm |
| Height | 3.75 cm |
| Weight | 1.000000 kgs |
