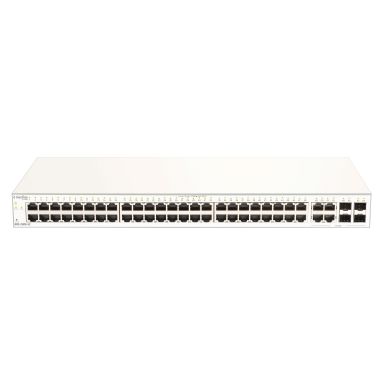

D-Link DBS-2000-52 network switch Managed Gigabit Ethernet (10/100/1000) Grey
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
| Networking standards | IEEE 802.3ad |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Performance | |
| Packet buffer memory | 12 MB |
| Processor frequency | 700 MHz |
| Memory type | DDR3-SDRAM |
| Mean time between failures (MTBF) | 400667 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Technical details | |
| Product colour | Grey |
| Processor frequency | 700 MHz |
| Mean time between failures (MTBF) | 400667 h |
| Built-in processor | Yes |
| Shipping (inner) case width | 12.4" (31.4 cm) |
| Shipping (inner) case net weight | 30.4 lbs (13.8 kg) |
| Shipping (inner) case length | 22.1" (56.2 cm) |
| Shipping (inner) case height | 15.1" (38.3 cm) |
| Quantity per shipping (inner) case | 3 pcs |
| Shipping (inner) case gross weight | 32.4 lbs (14.7 kg) |
| Quantity per pallet (sea) | 90 pcs |
| Quantity per pallet (air) | 54 pcs |
| Pallet width | 47.2" (120 cm) |
| Pallet length | 43.3" (110 cm) |
| Pallet height (sea) | 80.7" (2.05 m) |
| Pallet height (air) | 50.6" (128.4 cm) |
| Pallet gross weight (sea) | 1019 lbs (462.2 kg) |
| Pallet gross weight (air) | 627.9 lbs (284.8 kg) |
| Number of cartons per pallet (sea) | 30 |
| Number of cartons per pallet (air) | 18 |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Data transmission | |
| Packet buffer memory | 12 MB |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Security | |
| Security algorithms | WPAWPA2 |
| IGMP snooping | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 34.85 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 118.92 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 8.27" (210 mm) |
| Height | 1.75" (44.5 mm) |
| Weight | 7.63 lbs (3.46 kg) |
| Packaging data | |
D-Link DBS-2000-52 network switch Managed Gigabit Ethernet (10/100/1000) Grey
| Length | 21.75 cm |
| Width | 13.87 cm |
| Height | 3.87 cm |
| Weight | 1.000000 kgs |
