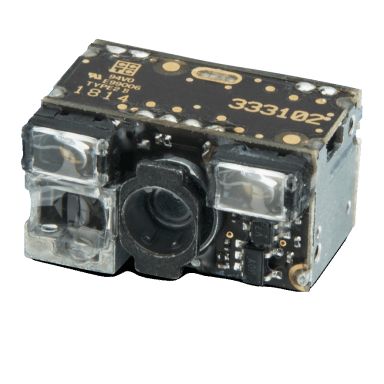

Datalogic DE2011-DL barcode reader Fixed bar code reader 2D Multicolour
In Stock
|
$76.14
$91.37 (Inc. VAT)
Scanning
Type
Fixed bar code reader
Linear (1D) barcodes supported
China Post, Codabar 125, Code 11, Code 128, Code 128A, Code 128B, Code 25 (IR 2 of 5), Code 3 of 9, Code 39, Code 39 (ASCII), Code 93, DataBar14, EAN 128, EAN 2, EAN 5, GS1 Composite, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, JAN, Japanese Post, Korea Post, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Yaw reading angle
-60 - 60°
Wavelength
650 nm
Tilt reading angle
-180 - 180°
Scanner type
2D
Pitch reading angle
-60 - 60°
Light levels (direct sunlight)
0 - 100000 lx
Optical sensor resolution (W x H)
752 x 480 pixels
Ports & interfaces
Connectivity technology
Wired
Performance
Product colour
Multicolour
Light levels (direct sunlight)
0 - 100000 lx
Design
Type
Fixed bar code reader
Product colour
Multicolour
Power
Power consumption
200 mA
Power source type
RS-232, USB
Input voltage
3.3 V
Weight & dimensions
Width
21 mm
Depth
15.8 mm
Height
11.4 mm
Weight
9 g
Technical details
Type
Fixed bar code reader
Product colour
Multicolour
Operational conditions
Light levels (direct sunlight)
0 - 100000 lx
Datalogic DE2011-DL barcode reader Fixed bar code reader 2D Multicolour
