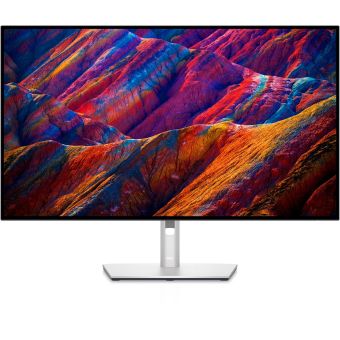

DELL UltraSharp 32 4K USB-C Hub Monitor - U3223QE
In Stock
|
Call For Price (0808 189 1246)
DELL UltraSharp 32 4K USB-C Hub Monitor - U3223QE
Write Your Own Review
Display
HDCP
Yes
Display brightness (typical)
400 cd/m²
Screen shape
Flat
Display number of colours
1.07 billion colours
Native aspect ratio
16:9
Pixel density
137.68 ppi
DDC/CI
Yes
Maximum refresh rate
60 Hz
sRGB coverage (typical)
100%
HD type
4K Ultra HD
Display technology
LCD
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.18159 x 0.18159 mm
Horizontal scan range
15 - 140 kHz
Vertical scan range
23 - 86 Hz
Viewable size, horizontal
69.7 cm
Viewable size, vertical
39.2 cm
Supported video modes
1080i, 1080p, 480p, 720p, 576p
Backlight type
LED
Display resolution
3840 x 2160 pixels
Response time
8 ms
Display diagonal
80 cm (31.5")
Contrast ratio (typical)
2000:1
Surface hardness
3H
Response time (fast)
5 ms
Touchscreen
No
High Dynamic Range (HDR) supported
No
Panel type
IPS Black
Heat dissipation
98.27 BTU/h
DCI-P3 coverage
98%
Display diagonal (metric)
80.01 cm
Colour gamut standard
sRGB
Anti-glare screen
Yes
Audio
Built-in speaker(s)
No
RMS rated power
0 W
Performance
Built-in speaker(s)
No
RMS rated power
0 W
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No
Low Blue Light technology
Yes
Flicker-free technology
Yes
Management features
On Screen Display (OSD)
Yes
Plug and Play
Yes
Network
Ethernet LAN (RJ-45) ports
0
Wi-Fi
No
Multimedia
Number of speakers
0
Built-in speaker(s)
No
RMS rated power
0 W
Built-in camera
No
Design
Market positioning
Graphics design
Heavy metals free
Hg (mercury)
Feet colour
Silver
Compliance industry standards
ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor Meets NFPA 99 leakage current requirements. Arsenic-Free glass and Mercury-Free for the panel only.
Product colour
Silver
Front bezel colour
Black
Camera
Built-in camera
No
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
Number of upstream ports
2
USB Type-A downstream ports quantity
5
USB Type-C downstream ports quantity
0
Headphone out
Yes
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DisplayPorts quantity
2
HDCP
Yes
Audio output
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
HDMI
Yes
HDMI version
2.0
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90 W
Number of USB Type-C upstream ports quantity
1
Wi-Fi
No
Ethernet LAN (RJ-45) ports
0
Technical details
Height (without stand)
410 mm
Depth (without stand)
55.8 mm
Width (without stand)
712.6 mm
Feet colour
Silver
RJ-45 ports quantity
1
Cable lock slot
Yes
Maximum resolution
3840 x 2160 pixels
HDMI
Yes
Product colour
Silver
Front bezel colour
Black
Sustainability certificates
TCO, ENERGY STAR, EPEAT Gold
Doesn't contain
PVC/BFR, Arsenic
Compliance certificates
RoHS
Power supply type
Internal
Weight (with stand)
9.98 kg
Surface hardness
3H
Touchscreen
No
Ergonomics
VESA mounting
Yes
Cable lock slot
Yes
Panel mounting interface
100 x 100 mm
Swivelling
Yes
Swivel angle range
-30 - 30°
Tilt angle range
-5 - 21°
Pivot
No
On Screen Display (OSD)
Yes
Plug and Play
Yes
Height adjustment
Yes
Tilt adjustment
Yes
Picture-by-Picture (PbP)
Yes
Power
Power supply type
Internal
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
220 W
Power consumption (standby)
0.3 W
Power consumption (typical)
29.4 W
Power consumption (off)
0.2 W
Input current
2.7 A
Energy efficiency scale
A to G
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
E
Energy consumption (SDR) per 1000 hours
29 kWh
Energy consumption (HDR) per 1000 hours
26 kWh
European Product Registry for Energy Labelling (EPREL) code
955168
Power management
Yes
Operational conditions
Non-operating altitude
0 - 12192 m
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Operating altitude
0 - 5000 m
Weight & dimensions
Height (without stand)
410 mm
Depth (without stand)
55.8 mm
Width (without stand)
712.6 mm
Width (with stand)
712.6 mm
Depth (with stand)
233.2 mm
Height (with stand)
469.3 mm
Bezel width (side)
7.65 mm
Bezel width (top)
7.65 mm
Bezel width (bottom)
1.01 cm
Weight (with stand)
9.98 kg
Weight (without stand)
5.65 kg
Package weight
14.5 kg
Packaging data
Package weight
14.5 kg
Stand included
Yes
Quick start guide
Yes
Cables included
AC, DisplayPort, USB Type-C to USB Type-A, USB Type-C to USB Type-C
Packaging content
Stand included
Yes
Quick start guide
Yes
Cables included
AC, DisplayPort, USB Type-C to USB Type-A, USB Type-C to USB Type-C
Sustainability
European Product Registry for Energy Labelling (EPREL) code
955168
Total carbon footprint (kg of CO2e)
880
Sustainability certificates
TCO, ENERGY STAR, EPEAT Gold
Doesn't contain
PVC/BFR, Arsenic
Carbon footprint
Total carbon footprint (kg of CO2e)
880
Total carbon emissions, w/o use phase (kg of CO2e)
560
Total carbon emissions, standard deviation (kg of CO2e)
210
PAIA version
1.3.0, 2021
Carbon emissions, energy usage (kg of CO2e)
320
Carbon emissions, manufacturing (kg of CO2e)
432.29
Carbon emissions, logistics (kg of CO2e)
120
Carbon emissions, end-of-life (kg of CO2e)
7.55
Other features
Heavy metals free
Hg (mercury)
RJ-45 ports quantity
1
Maximum resolution
3840 x 2160 pixels
Compliance industry standards
ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor Meets NFPA 99 leakage current requirements. Arsenic-Free glass and Mercury-Free for the panel only.
Ethernet LAN (RJ-45) ports
0
Power management
Yes
Picture-by-Picture (PbP)
Yes
DCI-P3 coverage
98%
Compliance certificates
RoHS
Height (without stand)
410 mm
Depth (without stand)
55.8 mm
Width (without stand)
712.6 mm
Power consumption (max)
220 W
Quick start guide
Yes
HDMI
Yes
Surface hardness
3H
USB Power Delivery up to
90 W
Energy efficiency scale
A to G
Power supply type
Internal
Touchscreen
No
USB Power Delivery (USB PD)
Yes
Front bezel colour
Black
Logistics data
Total carbon footprint (kg of CO2e)
880
Harmonized System (HS) code
85285210
Certificates
Compliance industry standards
ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor Meets NFPA 99 leakage current requirements. Arsenic-Free glass and Mercury-Free for the panel only.
| Length | 5.58 cm |
| Width | 71.26 cm |
| Height | 41.00 cm |
| Weight | 15.00 kgs |
