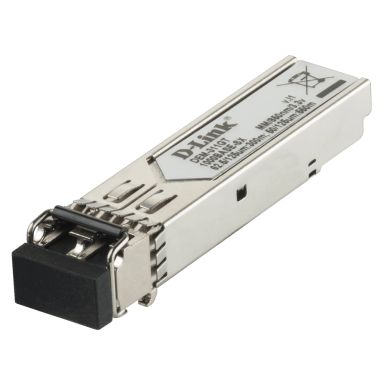

D-Link DEM-311GT network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
In Stock
|
£13.98
£16.78 (Inc. VAT)
get it next day (UK Mainland Orders)
Performance
SFP transceiver type
Fiber optic
Link budget
13 dB
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-4 dBmW
Tx power (max)
-17 dBmW
Rx power (max)
-3 dBmW
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
Fiber ethernet cabling technology
1000BASE
Product colour
Black, Stainless steel
Hot-Plug support
Yes
Features
Product colour
Black, Stainless steel
Hot-Plug support
Yes
Certification
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL
RX sensitivity
-17 dB
Power
Maximum current
0.24 A
Input voltage
3.3 V
Certificates
Certification
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL
Compliance certificates
RoHS
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Maximum operating temperature
70 °C
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Weight & dimensions
Width
13.4 mm
Depth
56.4 mm
Height
10.3 mm
Weight
15.5 g
Packaging content
Quantity per pack
10 pc(s)
Technical details
Hot-Plug support
Yes
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-4 dBmW
Tx power (max)
-17 dBmW
Rx power (max)
-3 dBmW
Sustainability compliance
Yes
Compliance certificates
RoHS
Logistics data
Quantity per pack
10 pc(s)
Other features
RX sensitivity
-17 dB
D-Link DEM-311GT network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
| Weight | 0.30 kgs |
