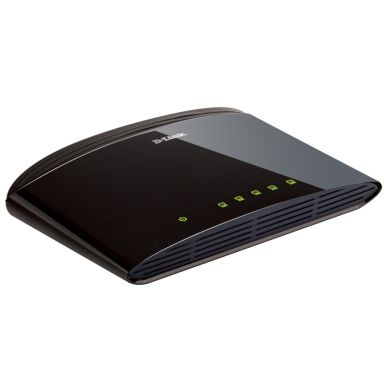

D-Link 5-Port 10/100Mbps Switch for SOHO
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
100Base-TX- 10Base-T
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
DC-in jack
Power
Power connector
DC-in jack
Power consumption (max)
3.8 W
Power supply included
Yes
Input voltage
5 V
Input current
1.2 A
Power source
AC
Technical details
Product colour
Black
Housing material
Plastic
Rack mounting
No
Management features
Switch type
Unmanaged
Network
Copper ethernet cabling technology
100Base-TX- 10Base-T
Networking standards
IEEE 802.3- IEEE 802.3u- IEEE 802.3x
Full duplex
Yes
Ethernet LAN data rates
10-100 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
MAC address table
2000 entries
Switching capacity
1 Gbit/s
Protocols
Switching protocols
CSMA/CD
Data link protocols
Ethernet- Fast Ethernet
Certificates
Certification
FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB
Design
Product colour
Black
LED indicators
Activity- Link- Power
Housing material
Plastic
Certification
FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB
Rack mounting
No
Performance
Harmonized System (HS) code
85176990
Fanless
Yes
Indication
LED indicators
Activity- Link- Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
125.3 mm
Depth
83.4 mm
Height
29.1 mm
Logistics data
Harmonized System (HS) code
85176990
Other features
Input voltage
5 V
Ethernet LAN data rates
10-100 Mbit/s
D-Link 5-Port 10/100Mbps Switch for SOHO
