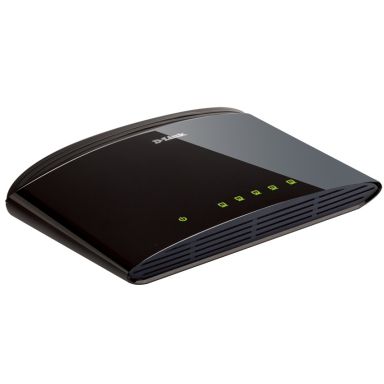

D-Link DES-1005D Unmanaged Fast Ethernet (10/100) Black
In Stock
|
Call For Price (0808 189 1246)
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Power connector
DC-in jack
Copper ethernet cabling technology
100Base-TX, 10Base-T
Network
Cable types supported
Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported
Yes
Copper ethernet cabling technology
100Base-TX, 10Base-T
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Packet buffer memory
0.046875 MB
MAC address table
2000 entries
Supported data transfer rates
10/20/100/200 Mb/s
Switching capacity
1 Gbit/s
Store-and-forward
Yes
Maximum data transfer rate
0.2 Gbit/s
Forwarding rate
0.1488 Mpps
Design
Product colour
Black
Stackable
No
LED indicators
LAN, Power
Rack mounting
No
Certification
RoHS, FCC, CE
Performance
Plug and Play
Yes
Packet buffer memory
0.046875 MB
Stackable
No
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Power
Power consumption (typical)
2.5 W
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Power LED
Yes
Packet transfer speed
14880 - 148800 p/s
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
8.528 BTU/h
Weight & dimensions
Width
125.3 mm
Depth
83.4 mm
Height
29.1 mm
Packaging content
User guide
Yes
Manual
Yes
Cables included
AC
Packaging data
Package width
65 mm
Package depth
105 mm
Package height
98 mm
Package weight
170 g
User guide
Yes
Manual
Yes
Cables included
AC
Technical details
Product colour
Black
Stackable
No
Rack mounting
No
Shipping (inner) case width
35 cm
Shipping (inner) case net weight
8.5 kg
Shipping (inner) case length
51.5 cm
Shipping (inner) case height
23 cm
Products per shipping (inner) case
50 pc(s)
Products per pallet (sea)
2400 pc(s)
Products per pallet (air)
2400 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
197.5 cm
Pallet height (air)
197.5 cm
Pallet gross weight (sea)
465.2 kg
Pallet gross weight (air)
465.2 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Master (outer) cases per pallet (air)
48 pc(s)
Shipping (inner) case gross weight
9.25 kg
Memory
Packet buffer memory
0.046875 MB
Certificates
Certification
RoHS, FCC, CE
Indication
Power LED
Yes
LED indicators
LAN, Power
Logistics data
Harmonized System (HS) code
85176990
D-Link DES-1005D Unmanaged Fast Ethernet (10/100) Black
| Length | 10.5 cm |
| Width | 6.5 cm |
| Height | 9.8 cm |
| Weight | 0.17 kgs |
