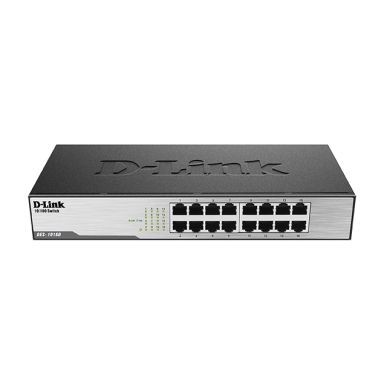

D-Link DES-1016D Unmanaged Fast Ethernet (10/100) Black
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
100BASE-TX, 10BASE-T
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Performance
Stackable
No
Mean time between failures (MTBF)
2266559 h
Internal memory
2 MB
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Stackable
No
Mean time between failures (MTBF)
2266559 h
Rack mounting
No
Shipping (inner) case width
39.2 cm
Shipping (inner) case net weight
9 kg
Shipping (inner) case length
42 cm
Shipping (inner) case height
31.1 cm
Products per shipping (inner) case
5 pc(s)
Products per pallet (sea)
180 pc(s)
Products per pallet (air)
120 pc(s)
Pallet gross width
110 cm
Pallet gross length
120 cm
Pallet height (sea)
2 m
Pallet height (air)
137.9 cm
Pallet gross weight (sea)
372.3 kg
Pallet gross weight (air)
253.9 kg
Master (outer) cases per pallet (sea)
36 pc(s)
Master (outer) cases per pallet (air)
24 pc(s)
Shipping (inner) case gross weight
9.87 kg
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Network
Auto-sensing
Yes
Copper ethernet cabling technology
100BASE-TX, 10BASE-T
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
MAC address table
8000 entries
Switching capacity
3.2 Gbit/s
Store-and-forward
Yes
Maximum data transfer rate
0.2 Gbit/s
Protocols
Supported network protocols
CSMA/CD
Certificates
Certification
FCC Class A, ICES-003 Class A, CE Class A, C-Tick Class A, VCCI Class A, LVD, cUL
Memory
Internal memory
2 MB
Design
Product colour
Black
Stackable
No
LED indicators
Activity, Link, Power, Power
Certification
FCC Class A, ICES-003 Class A, CE Class A, C-Tick Class A, VCCI Class A, LVD, cUL
Rack mounting
No
Indication
LED indicators
Activity, Link, Power, Power
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
2.89 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
9.86 BTU/h
Weight & dimensions
Width
280 mm
Depth
125.8 mm
Height
44 mm
Packaging data
Package width
282 mm
Package depth
376 mm
Package height
78 mm
Package weight
1.8 kg
Logistics data
Harmonized System (HS) code
85176990
D-Link DES-1016D Unmanaged Fast Ethernet (10/100) Black
