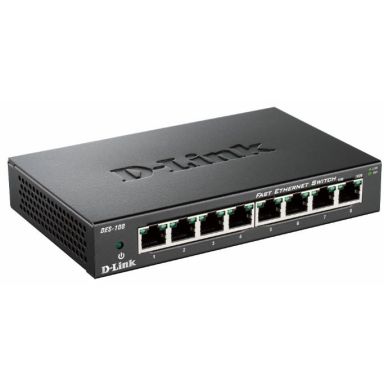

D-LINK Switch Des-108/e 8 Port Fast Ethernet
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
100BASE-TX- 10BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Power connector
DC-in jack
Performance
Packet buffer memory
0.768 MB
Mean time between failures (MTBF)
511323 h
Harmonized System (HS) code
85176990
Power
Power connector
DC-in jack
Power consumption (typical)
4.5 W
Input voltage
5 V
Input current
1 A
Technical details
Product colour
Black
Mean time between failures (MTBF)
511323 h
Housing material
Metal
Rack mounting
No
Shipping (inner) case width
26 cm
Shipping (inner) case net weight
6.1 kg
Shipping (inner) case length
37 cm
Shipping (inner) case height
44.3 cm
Products per shipping (inner) case
10 pc(s)
Products per pallet (sea)
480 pc(s)
Products per pallet (air)
480 pc(s)
Pallet gross width
122 cm
Pallet gross length
102 cm
Pallet height (sea)
2.07 m
Pallet height (air)
2.07 m
Pallet gross weight (sea)
357.5 kg
Pallet gross weight (air)
357.5 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Master (outer) cases per pallet (air)
48 pc(s)
Shipping (inner) case gross weight
7 kg
Management features
Quality of Service (QoS) support
Yes
Network
Copper ethernet cabling technology
100BASE-TX- 10BASE-T
Networking standards
IEEE 802.1p- IEEE 802.3- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Packet buffer memory
0.768 MB
MAC address table
1000 entries
Supported data transfer rates
10/100 Mbps
Switching capacity
1.6 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Maximum data transfer rate
0.1 Gbit/s
Security
MAC address filtering
Yes
Certificates
Certification
RoHS- FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB
Memory
Packet buffer memory
0.768 MB
Design
Product colour
Black
LED indicators
Link- Power
Housing material
Metal
Certification
RoHS- FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB
Rack mounting
No
Indication
LED indicators
Link- Power
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Packaging data
Package width
208 mm
Package depth
250 mm
Package height
68 mm
Package weight
610 g
Logistics data
Harmonized System (HS) code
85176990
Other features
Data transfer rate
200 Mbit/s
Dimensions (WxDxH)
162 x 102 x 28 mm
Input voltage
5 V
D-LINK Switch Des-108/e 8 Port Fast Ethernet
