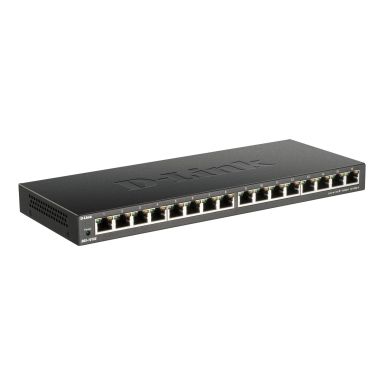

D-Link Switch DGS-1016S 16 Port 1 Gbps 1 Switch
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory
0.512 MB
Auto-negotiation
Yes
Mean time between failures (MTBF)
564658 h
Fanless
Yes
Technical details
Product colour
Black
Mean time between failures (MTBF)
564658 h
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Network
Cable length detection
Yes
Copper ethernet cabling technology
1000BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Data transmission
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (1 Gbps)
1488000 pps
Jumbo frames
9216
Packet buffer memory
0.512 MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Certificates
Certification
CE, FCC, ICES 003, RCM
Memory
Packet buffer memory
0.512 MB
Design
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Certification
CE, FCC, ICES 003, RCM
Indication
LED indicators
Activity, Link, Power, Speed
Power
Power consumption (max)
8.89 W
Input current
1 A
DC input voltage
12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
30.32 BTU/h
Weight & dimensions
Width
280 mm
Depth
110 mm
Height
25 mm
Weight
770 g
D-Link Switch DGS-1016S 16 Port 1 Gbps 1 Switch
