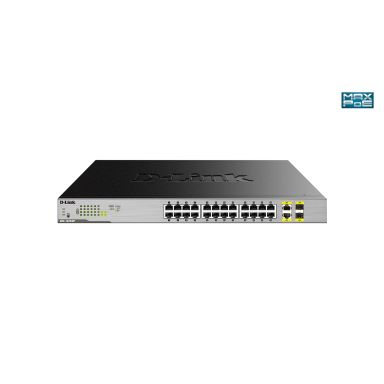

D-Link DGS-1026MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
In Stock
|
$384.53
$461.44 (Inc. VAT)
Technical details
Product colour
Black- Grey
Mean time between failures (MTBF)
205975 h
Shipping (inner) case width
20.5 cm
Shipping (inner) case net weight
8.39 kg
Shipping (inner) case length
52 cm
Shipping (inner) case height
41 cm
Quantity per shipping (inner) case
2 pc(s)
Quantity per pallet (sea)
80 pc(s)
Quantity per pallet (air)
60 pc(s)
Pallet width
120 cm
Pallet length
110 cm
Pallet height (sea)
177.5 cm
Pallet height (air)
136.5 cm
Pallet gross weight (sea)
369.8 kg
Pallet gross weight (air)
281.8 kg
Number of cartons per pallet (sea)
40 pc(s)
Number of cartons per pallet (air)
30 pc(s)
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
1
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Auto MDI/MDI-X
Yes
Data transmission
Throughput
38.69 Mpps
MAC address table
8192 entries
Switching capacity
52 Gbit/s
Store-and-forward
Yes
Certificates
Safety
UL/CSA 60950-1- EN 60950-1- IEC 60950-1
Certification
FCC Class A CE CCC RoHS VCCI BSMI RCM
Design
Safety
UL/CSA 60950-1- EN 60950-1- IEC 60950-1
Product colour
Black- Grey
LED indicators
Activity- Link- PoE- Power- Power fail- Speed
Certification
FCC Class A CE CCC RoHS VCCI BSMI RCM
Number of fans
2 fan(s)
Performance
Buffer size
512 KB
Mean time between failures (MTBF)
205975 h
Indication
LED indicators
Activity- Link- PoE- Power- Power fail- Speed
Power
Power consumption (max)
444.1 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1515 BTU/h
Weight & dimensions
Width
440 mm
Depth
250.4 mm
Height
44 mm
Weight
3.1 kg
Packaging data
Package width
388 mm
Package depth
506 mm
Package height
90 mm
Package weight
3.7 kg
D-Link DGS-1026MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
| Length | 25.04 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 3.100000 kgs |
