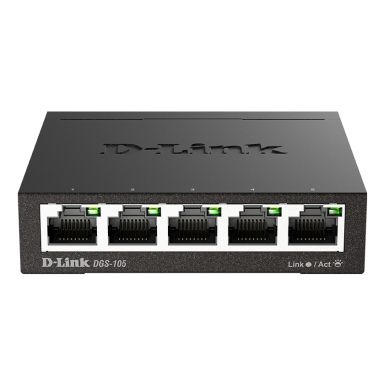

D-Link DGS-105 Black
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T- 100BASE-TX- 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Performance | |
| Packet buffer memory | 0.128 MB |
| Mean time between failures (MTBF) | 1688338 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Power consumption (typical) | 2.1 W |
| Input voltage | 5 V |
| Input current | 1 A |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 1688338 h |
| Housing material | Metal |
| Rack mounting | No |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case net weight | 5 kg |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case height | 36.6 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Pallet height (sea) | 2.04 m |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 439.8 kg |
| Pallet gross weight (air) | 439.8 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Shipping (inner) case gross weight | 5.53 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| Copper ethernet cabling technology | 1000BASE-T- 100BASE-TX- 10BASE-T |
| Networking standards | IEEE 802.1p- IEEE 802.3- IEEE 802.3ab- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Packet buffer memory | 0.128 MB |
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Security | |
| MAC address filtering | Yes |
| Certificates | |
| Certification | FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB- RoHS |
| Memory | |
| Packet buffer memory | 0.128 MB |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Certification | FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB- RoHS |
| Rack mounting | No |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 28 mm |
| Weight | 267 g |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Connectivity technology | Wired |
| Input voltage | 5 V |
D-Link DGS-105 Black
