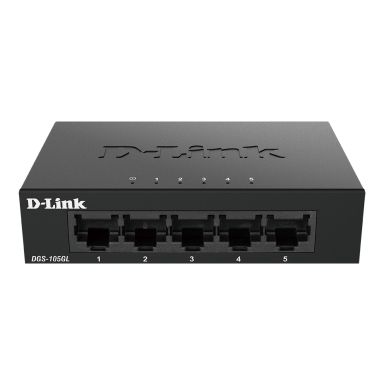

D-Link 5-Port Gigabit Ethernet Switch

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Flow control support

Yes

Auto MDI/MDI-X

Yes

Packet forwarding rate (100 Mbps)

148800 pps

Packet forwarding rate (10 Mbps)

14880 pps

Packet forwarding rate (1 Gbps)

1488000 pps

Jumbo frames

9216

MAC address table

2000 entries

Switching capacity

10 Gbit/s

Store-and-forward

Yes

Number of queues

8

Jumbo frames support

Yes

Forwarding rate

7.44 Mpps

Form factor

Desktop

Product colour

Black

Stackable

Yes

LED indicators

Activity, Link, Power

Housing material

Metal

Certification

CE; FCC; RoHS

Mean time between failures (MTBF)

1455562 h

Stackable

Yes

Harmonized System (HS) code

85176990

Power consumption (max)

3.55 W

Input current

1 A

DC input voltage

5 V

Power source

DC

Storage temperature (T-T)

-10 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Heat dissipation

12.11 BTU/h

Width

100 mm

Depth

64 mm

Height

24 mm

Weight

160 g

Form factor

Desktop

Product colour

Black

Stackable

Yes

Mean time between failures (MTBF)

1455562 h

Housing material

Metal

Compliance certificates

CE, RoHS

Certification

CE; FCC; RoHS

Compliance certificates

CE, RoHS

LED indicators

Activity, Link, Power

Harmonized System (HS) code

85176990
