0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 1000BASE-T-100BASE-TX-10BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Power connector | DC-in jack |
Performance | |
Packet buffer memory | 0.128 MB |
Stackable | No |
Mean time between failures (MTBF) | 2053751 h |
Power | |
Input voltage | 5 V |
Power connector | DC-in jack |
Power consumption (typical) | 2.8 W |
Input current | 1 A |
Technical details | |
Product colour | Black |
Stackable | No |
Mean time between failures (MTBF) | 2053751 h |
Housing material | Metal |
Rack mounting | No |
Shipping (inner) case width | 26 cm |
Shipping (inner) case net weight | 7 kg |
Shipping (inner) case length | 37 cm |
Shipping (inner) case height | 44.3 cm |
Quantity per shipping (inner) case | 10 pc(s) |
Quantity per pallet (sea) | 480 pc(s) |
Quantity per pallet (air) | 480 pc(s) |
Pallet width | 120 cm |
Pallet length | 110 cm |
Pallet height (sea) | 196.7 cm |
Pallet height (air) | 196.7 cm |
Pallet gross weight (sea) | 394.6 kg |
Pallet gross weight (air) | 394.6 kg |
Number of cartons per pallet (sea) | 48 pc(s) |
Number of cartons per pallet (air) | 48 pc(s) |
Management features | |
Quality of Service (QoS) support | Yes |
Network | |
Copper ethernet cabling technology | 1000BASE-T-100BASE-TX-10BASE-T |
Networking standards | IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x |
Full duplex | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | Yes |
Data transmission | |
Packet buffer memory | 0.128 MB |
MAC address table | 8000 entries |
Supported data transfer rates | 10/100/1000 Mbps |
Switching capacity | 16 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Maximum data transfer rate | 1 Gbit/s |
Security | |
MAC address filtering | Yes |
Certificates | |
Certification | FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB- RoHS |
Memory | |
Packet buffer memory | 0.128 MB |
Design | |
Product colour | Black |
Stackable | No |
LED indicators | Link- Power |
Housing material | Metal |
Certification | FCC Class B- ICES-003 Class B- CE Class B- C-Tick Class B- VCCI Class B- cUL- CB- RoHS |
Rack mounting | No |
Indication | |
LED indicators | Link- Power |
Operational conditions | |
Storage temperature (T-T) | -10 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Weight | 440 g |
Packaging data | |
Package width | 208 mm |
Package depth | 250 mm |
Package height | 68 mm |
Package weight | 654 g |
Other features | |
Data transfer rate | 2000 Mbit/s |
Dimensions (WxDxH) | 162 x 102 x 28 mm |
Connectivity technology | Wired |
Input voltage | 5 V |

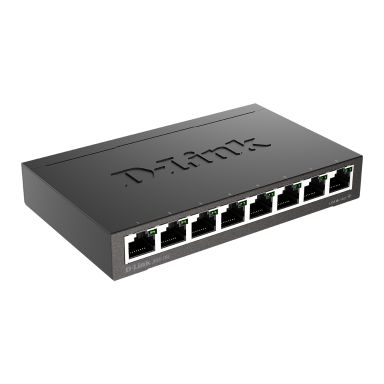

D-Link DGS-108 Black
