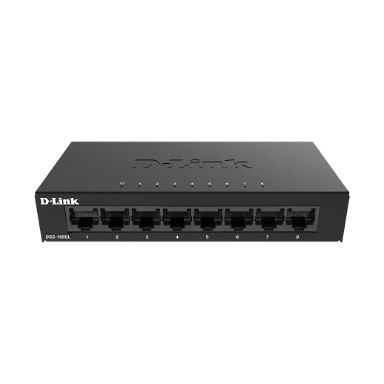

D-Link DGS-108GL Unmanaged Gigabit Ethernet Black
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Technical details
Product colour
Black
Mean time between failures (MTBF)
1402428 h
Housing material
Metal
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
Data transmission
Jumbo frames
9216
MAC address table
4000 entries
Switching capacity
16 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
11.9 Mpps
Design
Product colour
Black
LED indicators
Activity, Link, Power
Housing material
Metal
Performance
Mean time between failures (MTBF)
1402428 h
Harmonized System (HS) code
85176990
Indication
LED indicators
Activity, Link, Power
Power
Power consumption (max)
4.31 W
Input current
1 A
DC input voltage
5 V
Operational conditions
Storage temperature (T-T)
-10 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
14.7 BTU/h
Weight & dimensions
Width
140 mm
Depth
67 mm
Height
26 mm
Weight
240 g
Logistics data
Harmonized System (HS) code
85176990
D-Link DGS-108GL Unmanaged Gigabit Ethernet Black
