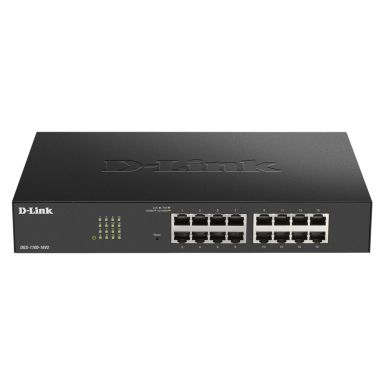

D-Link Gigabit Smart Managed Switches
0 Reviews
| Add your review
In Stock
|
£94.93
£113.92 (Inc. VAT)
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Network | |
| IGMP snooping | Yes |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 128 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 128 |
| Data transmission | |
| Number of VLANs | 128 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 23.81 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Auto-negotiation | Yes |
| Processor frequency | 125 MHz |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 710519 h |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Technical details | |
| Product colour | Black |
| Processor frequency | 125 MHz |
| Mean time between failures (MTBF) | 710519 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Security | |
| Security algorithms | SNMP- SSL/TLS |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Memory type | DRAM |
| Flash memory | 16 MB |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 10.1 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 34.46 BTU/h |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.27 kg |
