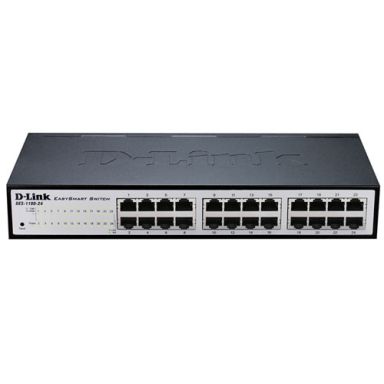

D-Link DGS-1100-24V2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black, Grey
In Stock
|
£126.61
£151.93 (Inc. VAT)
get it next day (UK Mainland Orders)
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
128
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Virtual LAN features
Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
128
Virtual LAN features
Port-based VLAN
Data transmission
Number of VLANs
128
Jumbo frames
9216
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Jumbo frames support
Yes
Forwarding rate
35.71 Mpps
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Mean time between failures (MTBF)
424762 h
Flash memory
16 MB
Technical details
Form factor
1U
Product colour
Black, Grey
Mean time between failures (MTBF)
424762 h
Rack mounting
Yes
Sustainability compliance
Yes
Compliance certificates
BSMI, CB, CCC, cUL
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Security
Loop protection
Yes
IGMP snooping
Yes
Certificates
Certification
FCC, CE, VCCI, C-Tick, BSMI, CCC
Memory
Packet buffer memory
4.1 MB
Flash memory
16 MB
Design
Form factor
1U
Product colour
Black, Grey
LED indicators
Yes
Certification
FCC, CE, VCCI, C-Tick, BSMI, CCC
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
15.9 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Number of power supply units
1
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
54.3 BTU/h
Weight & dimensions
Width
280 mm
Depth
180 mm
Height
44 mm
Weight
1.32 kg
Sustainability
Sustainability compliance
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
D-Link DGS-1100-24V2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black, Grey
| Length | 18 cm |
| Width | 28 cm |
| Height | 4.4 cm |
| Weight | 1.32 kgs |
