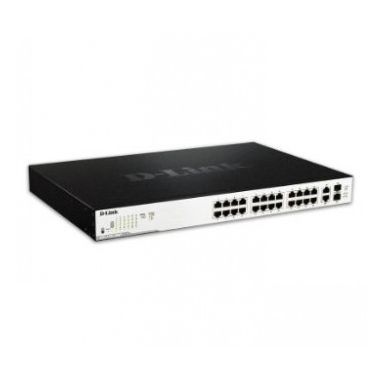

D-Link DGS-1100-26MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Number of VLANs
4094
10G support
No
Virtual LAN features
Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Port-based VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
9216
Throughput
38.69 Mpps
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
52 Gbit/s
Performance
Packet buffer memory
1.5 MB
Mean time between failures (MTBF)
269291 h
Flash memory
16 MB
Harmonized System (HS) code
85176990
Power
Power connector
DC-in jack
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
387 W
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
269291 h
Rack mounting
Yes
Shipping (inner) case width
29 cm
Shipping (inner) case net weight
14.6 kg
Shipping (inner) case length
52 cm
Shipping (inner) case height
40 cm
Products per shipping (inner) case
3 pc(s)
Products per pallet (sea)
108 pc(s)
Products per pallet (air)
81 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
173.5 cm
Pallet height (air)
133.5 cm
Pallet gross weight (sea)
587.5 kg
Pallet gross weight (air)
445.1 kg
Master (outer) cases per pallet (sea)
36 pc(s)
Master (outer) cases per pallet (air)
27 pc(s)
Shipping (inner) case gross weight
15.8 kg
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Certificates
Safety
cUL, UL, GS, CB
Certification
FCC/IC, CE, VCCI, RCM, BSMI
Memory
Packet buffer memory
1.5 MB
Flash memory
16 MB
Design
Safety
cUL, UL, GS, CB
Form factor
1U
Product colour
Black
LED indicators
Yes
Certification
FCC/IC, CE, VCCI, RCM, BSMI
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
147046 BTU/h
Weight & dimensions
Width
440 mm
Depth
290 mm
Height
44 mm
Weight
3.81 kg
Packaging data
Package width
377 mm
Package depth
508 mm
Package height
92 mm
Package weight
4.4 kg
Logistics data
Harmonized System (HS) code
85176990
D-Link DGS-1100-26MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
