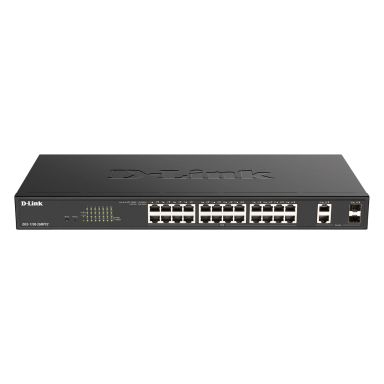

D-Link Gigabit Smart Managed Switches
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
⢠RFC768 UDP ⢠RFC791 IP ⢠RFC792 ICMP ⢠RFC793 TCP ⢠RFC826 ARP ⢠RFC1213 MIB II ⢠RFC1493 Bridage MIB ⢠RFC1907 SNMPv2 MIB ⢠RFC1215 MIB Traps Convention
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10GBASE-T- 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Network
IGMP snooping
Yes
IPv6 multicast entries
1
IPv4 multicast entries
1
Copper ethernet cabling technology
10GBASE-T- 1000BASE-T
Networking standards
IEEE 802.1D- IEEE 802.1w- IEEE 802.3af- IEEE 802.3at
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Half duplex
Yes
Virtual LAN features
Port-based VLAN- Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Port-based VLAN- Voice VLAN
Data transmission
Number of multicast groups filtered
1
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Jumbo frames support
Yes
Forwarding rate
38.69 Mpps
IPv4 & IPv6 features
IPv4 & IPv6 features
IPv4 FIB
Performance
Auto-negotiation
Yes
Noise level
50.5 dB
Flash memory
16 MB
Harmonized System (HS) code
85176990
Fanless
Yes
MTBF (PoE)
317.777 h
Technical details
Product colour
Black
Noise level
50.5 dB
Housing material
Metal
Rack mounting
Yes
Security
Static port security
Yes
Security algorithms
SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
DHCP features
DHCP client
Multicast features
Number of multicast groups filtered
1
Multicast support
Yes
IPv6 multicast entries
1
IPv4 multicast entries
1
Protocols
IPv4 & IPv6 features
IPv4 FIB
Memory
Flash memory
16 MB
Design
Product colour
Black
Housing material
Metal
Rack mounting
Yes
Power
Power consumption (max)
454.1 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
287 BTU/h
Weight & dimensions
Width
440 mm
Depth
208 mm
Height
44 mm
Weight
2.8 kg
Logistics data
Harmonized System (HS) code
85176990
D-Link Gigabit Smart Managed Switches
