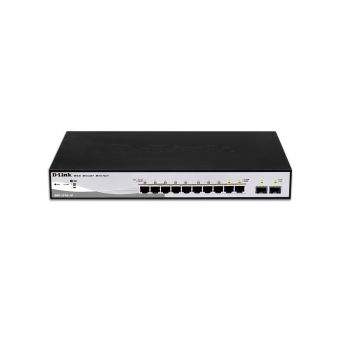

D-Link DGS-1210-10 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black, Grey
In Stock
|
£113.30
£135.96 (Inc. VAT)
get it next day (UK Mainland Orders)
D-Link DGS-1210-10 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black, Grey
Write Your Own Review
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Performance
Packet buffer memory
0.512 MB
Stackable
Yes
Auto-negotiation
Yes
Mean time between failures (MTBF)
205249 h
Harmonized System (HS) code
85176990
Power
Power connector
DC-in jack
AC input voltage
100 - 240 V
Technical details
Form factor
1U
Product colour
Black, Grey
Stackable
Yes
Mean time between failures (MTBF)
205249 h
Rack mounting
Yes
Shipping (inner) case width
34.6 cm
Shipping (inner) case net weight
10.4 kg
Shipping (inner) case length
38.2 cm
Shipping (inner) case height
31.7 cm
Products per shipping (inner) case
5 pc(s)
Products per pallet (sea)
270 pc(s)
Products per pallet (air)
180 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
2.04 m
Pallet height (air)
140.3 cm
Pallet gross weight (sea)
625.9 kg
Pallet gross weight (air)
425.5 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Master (outer) cases per pallet (air)
36 pc(s)
Shipping (inner) case gross weight
11.1 kg
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Data transmission
Jumbo frames
9216
Packet buffer memory
0.512 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Security
Loop protection
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
0.512 MB
Design
Form factor
1U
Product colour
Black, Grey
Stackable
Yes
Rack mounting
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
373.96 BTU/h
Weight & dimensions
Width
280 mm
Depth
126 mm
Height
44 mm
Weight
980 g
Packaging data
Package width
286 mm
Package depth
325 mm
Package height
70 mm
Package weight
2.08 kg
Logistics data
Harmonized System (HS) code
85176990
| Length | 32.5 cm |
| Width | 28.6 cm |
| Height | 7 cm |
| Weight | 2.08 kgs |
