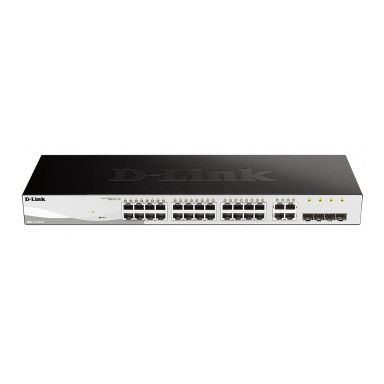

D-Link DGS-1210-24 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black 1U
0 Reviews
| Add your review
In Stock
|
£104.60
£125.52 (Inc. VAT)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | 1213 MIB II- 1493 Bridge MIB- 1907 SNMP v2 MIB- 1215 Trap Convention MIB- 2233 Interface Group MIB- D-Link Private MIB |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 1000BASE-T-100BASE-TX-10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Power connector | DC-in jack |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat5-Cat5e |
| Copper ethernet cabling technology | 1000BASE-T-100BASE-TX-10BASE-T |
| Networking standards | IEEE 802.3-IEEE 802.3ab-IEEE 802.3u-IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 41.7 Mpps |
| Performance | |
| Packet buffer memory | 0.5 MB |
| Stackable | No |
| Mean time between failures (MTBF) | 992594 h |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 16.94 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 992594 h |
| Rack mounting | Yes |
| Shipping (inner) case width | 38.1 cm |
| Shipping (inner) case net weight | 16.2 kg |
| Shipping (inner) case length | 51 cm |
| Shipping (inner) case height | 28.2 cm |
| Quantity per shipping (inner) case | 5 pc(s) |
| Quantity per pallet (sea) | 180 pc(s) |
| Quantity per pallet (air) | 120 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 110 cm |
| Pallet height (sea) | 188.7 cm |
| Pallet height (air) | 130.3 cm |
| Pallet gross weight (sea) | 635 kg |
| Pallet gross weight (air) | 429.5 kg |
| Number of cartons per pallet (sea) | 36 pc(s) |
| Number of cartons per pallet (air) | 24 pc(s) |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CE Class A- cUL- CE LVD |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| Certification | CE Class A- cUL- CE LVD |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 82.23 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Weight | 2.15 kg |
| Packaging data | |
| Package width | 249 mm |
| Package depth | 493 mm |
| Package height | 72 mm |
| Package weight | 3.24 kg |
D-Link DGS-1210-24 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black 1U
