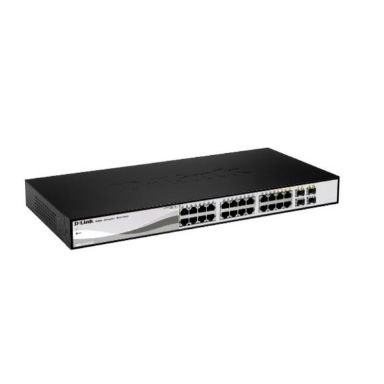

D-Link DGS-1210-26 network switch Managed L2 Gigabit Ethernet 1U Black
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Traffic classification
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC1213MIB II- RFC1493- RFC1907- RFC1757- 2819- RFC2021- RFC1398- 1643- 1650- 2358- 2665- RFC2674- 4363- RFC 2233- 2863- RFC 2618- RFC 2620- RFC 2925
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
10BASE-T- 100BASE-TX- 1000BASE-T
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T- 100BASE-TX- 1000BASE-T
Networking standards
IEEE 802.1D- IEEE 802.1Q- IEEE 802.1p- IEEE 802.1s- IEEE 802.1v- IEEE 802.1w- IEEE 802.1x- IEEE 802.3- IEEE 802.3ab- IEEE 802.3ad- IEEE 802.3ah- IEEE 802.3az- IEEE 802.3u- IEEE 802.3x- IEEE 802.3z
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Auto-negotiation
Yes
Virtual LAN features
Tagged VLAN- Port-based VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Tagged VLAN- Port-based VLAN
Performance
Stackable
Yes
Auto-negotiation
Yes
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
1082534 h
Internal memory
128 MB
Flash memory
32 MB
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black- Grey
Stackable
Yes
Mean time between failures (MTBF)
1082534 h
Rack mounting
Yes
Shipping (inner) case width
38.1 cm
Shipping (inner) case net weight
15.7 kg
Shipping (inner) case length
51 cm
Shipping (inner) case height
28.2 cm
Products per shipping (inner) case
5 pc(s)
Products per pallet (sea)
180 pc(s)
Products per pallet (air)
120 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
188.7 cm
Pallet height (air)
130.3 cm
Pallet gross weight (sea)
621.3 kg
Pallet gross weight (air)
422.4 kg
Master (outer) cases per pallet (sea)
36 pc(s)
Master (outer) cases per pallet (air)
24 pc(s)
Shipping (inner) case gross weight
16.5 kg
Data transmission
Throughput
38.7 Mpps
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Security
Loop protection
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS- SNMP- SSH
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server- DHCP client
Multicast features
Multicast support
Yes
Certificates
Safety
CCC- CE LVD- UL/cUL
Electromagnetic compatibility
FCC A- CE A- VCCI- C-Tick- BSMI- CCC
Certification
IEC61000-4-5- RoHS
Memory
Memory type
DDR3-SDRAM
Internal memory
128 MB
Flash memory
32 MB
Design
Safety
CCC- CE LVD- UL/cUL
Form factor
1U
Product colour
Black- Grey
Stackable
Yes
LED indicators
Activity- Fan fail- Link- Power- Speed
Electromagnetic compatibility
FCC A- CE A- VCCI- C-Tick- BSMI- CCC
Certification
IEC61000-4-5- RoHS
Rack mounting
Yes
Number of fans
2 fan(s)
Indication
LED indicators
Activity- Fan fail- Link- Power- Speed
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
15.11 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
51.57 BTU/h
Weight & dimensions
Width
440 mm
Depth
140 mm
Height
44 mm
Weight
2.06 kg
Packaging data
Package width
249 mm
Package depth
493 mm
Package height
72 mm
Package weight
3.13 kg
Logistics data
Harmonized System (HS) code
85176990
D-Link DGS-1210-26 network switch Managed L2 Gigabit Ethernet 1U Black
