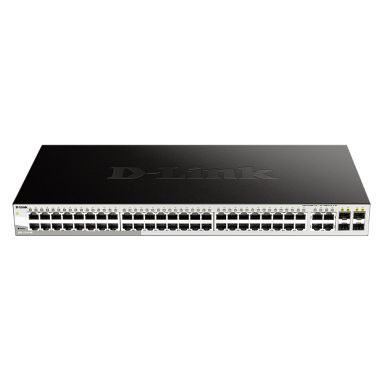

D-Link DGS-1210-48 network switch Managed L2 Black
0 Reviews
| Add your review
In Stock
|
£238.34
£286.01 (Inc. VAT)
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | 1213 MIB II- 1493 Bridge MIB- 1907 SNMP v2 MIB- 1215 Trap Convention MIB- 2233 Interface Group MIB- D-Link Private MIB |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 100BASE-TX |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 100BASE-TX |
| Networking standards | IEEE 802.3-IEEE 802.3ab-IEEE 802.3u-IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Virtual LAN features | |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| Packet buffer memory | 1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 96 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 96 Gbit/s |
| Performance | |
| Packet buffer memory | 1 MB |
| Stackable | No |
| Noise level | 46.2 dB |
| Mean time between failures (MTBF) | 322402 h |
| Power | |
| Power connector | DC-in jack |
| Power consumption (typical) | 59.1 W |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Noise level | 46.2 dB |
| Mean time between failures (MTBF) | 322402 h |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case net weight | 14.1 kg |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case height | 38.3 cm |
| Quantity per shipping (inner) case | 3 pc(s) |
| Quantity per pallet (sea) | 90 pc(s) |
| Quantity per pallet (air) | 54 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 110 cm |
| Pallet height (sea) | 2.05 m |
| Pallet height (air) | 128.4 cm |
| Pallet gross weight (sea) | 470.2 kg |
| Pallet gross weight (air) | 289.6 kg |
| Number of cartons per pallet (sea) | 30 pc(s) |
| Number of cartons per pallet (air) | 18 pc(s) |
| Security | |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | cUL- LVD |
| Electromagnetic emissions | FCC Class A- CE Class A- IC Class A- VCCI Class A- C-Tick |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Safety | cUL- LVD |
| Product colour | Black |
| Stackable | No |
| Number of fans | 2 fan(s) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 201.65 BTU/h |
| Weight & dimensions | |
| Weight | 4.04 kg |
| Packaging data | |
| Package width | 354 mm |
| Package depth | 552 mm |
| Package height | 98 mm |
| Package weight | 4.69 kg |
| Other features | |
| Dimensions (WxDxH) | 440 x 250 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | 100 - 240 VAC- 50/60 Hz |
| Performance management | Telnet- SNMP- SNTP |
| Packet transfer speed | 71.4 Mpps |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC Class A- CE Class A- IC Class A- VCCI Class A- C-Tick |
