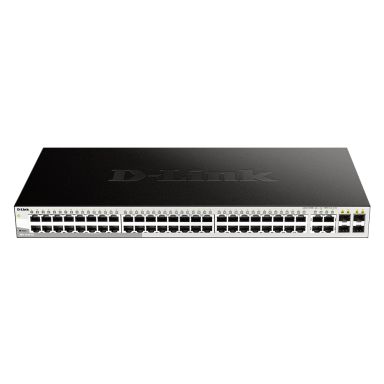

D-Link 52-Port Gigabit Smart Managed Switch including 4 x 100/1000Mbps Combo Ports
In Stock
|
£301.08
£361.30 (Inc. VAT)
get it next day (UK Mainland Orders)
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Combo SFP ports quantity
4
Power connector
AC-in jack
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
256
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
Jumbo frames
10000
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
77.4 Mpps
Number of VLANs
256
Security
Loop protection
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Performance
Noise level
0 dB
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
400667 h
Internal memory
256 MB
Flash memory
32 MB
Packet buffer memory
12 MB
Stackable
Yes
Auto-negotiation
Yes
Power
Power consumption (max)
34.85 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power connector
AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
118.92 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Weight & dimensions
Width
440 mm
Depth
210 mm
Height
44 mm
Weight
3.46 kg
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Noise level
0 dB
Mean time between failures (MTBF)
400667 h
Rack mounting
Yes
Memory
Packet buffer memory
12 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Indication
LED indicators
Yes
D-Link 52-Port Gigabit Smart Managed Switch including 4 x 100/1000Mbps Combo Ports
| Length | 21 cm |
| Width | 44 cm |
| Height | 4.4 cm |
| Weight | 3.46 kgs |
