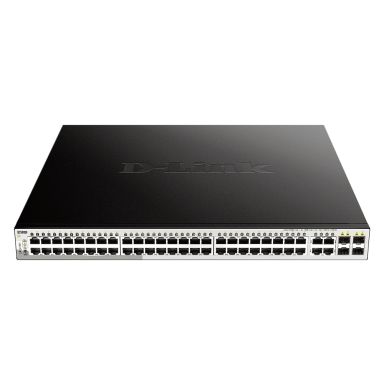

D-Link DGS-1210-52MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
0 Reviews
| Add your review
In Stock
|
£456.77
£548.12 (Inc. VAT)
Ports & interfaces | |
---|---|
Copper ethernet cabling technology | 1000BASE-T100BASE-TX10GBASE-T |
SFP module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 48 |
SFP/SFP+ slots quantity | 4 |
Power connector | DC-in jack |
Network | |
IGMP snooping | Yes |
Copper ethernet cabling technology | 1000BASE-T100BASE-TX10GBASE-T |
Full duplex | Yes |
Spanning tree protocol | Yes |
Port mirroring | Yes |
Number of VLANs | 4094 |
Link aggregation | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Virtual LAN features | |
Number of VLANs | 4094 |
Data transmission | |
Number of VLANs | 4094 |
Packet buffer memory | 3 MB |
MAC address table | 16000 entries |
Switching capacity | 104 Gbit/s |
Performance | |
Packet buffer memory | 3 MB |
Mean time between failures (MTBF) | 318.616 h |
Flash memory | 128 MB |
Power | |
Power connector | DC-in jack |
Power consumption (max) | 483.1 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Technical details | |
Form factor | 1U |
Product colour | Black |
Mean time between failures (MTBF) | 318.616 h |
Rack mounting | Yes |
Shipping (inner) case width | 12.4" (31.5 cm) |
Shipping (inner) case net weight | 37.7 lbs (17.1 kg) |
Shipping (inner) case length | 22.6" (57.4 cm) |
Shipping (inner) case height | 23.5" (59.8 cm) |
Quantity per shipping (inner) case | 2 pc(s) |
Shipping (inner) case gross weight | 40.6 lbs (18.4 kg) |
Quantity per pallet (sea) | 36 pc(s) |
Quantity per pallet (air) | 24 pc(s) |
Pallet width | 47.2" (120 cm) |
Pallet length | 43.3" (110 cm) |
Pallet height (sea) | 75.9" (192.9 cm) |
Pallet height (air) | 52.4" (133.1 cm) |
Pallet gross weight (sea) | 786.2 lbs (356.6 kg) |
Pallet gross weight (air) | 542.1 lbs (245.9 kg) |
Number of cartons per pallet (sea) | 18 |
Number of cartons per pallet (air) | 12 |
Management features | |
Switch type | Managed |
System event log | Yes |
Quality of Service (QoS) support | Yes |
Switch layer | L2 |
Security | |
SSH/SSL support | Yes |
MAC address filtering | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
DHCP features | DHCP serverDHCP client |
Certificates | |
Safety | cUL CE LVD |
Memory | |
Packet buffer memory | 3 MB |
Flash memory | 128 MB |
Design | |
Safety | cUL CE LVD |
Form factor | 1U |
Product colour | Black |
LED indicators | Yes |
Rack mounting | Yes |
Indication | |
LED indicators | Yes |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 370 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -20 - 70 °C |
Storage relative humidity (H-H) | 0 - 95% |
Operating temperature (T-T) | -5 - 50 °C |
Operating relative humidity (H-H) | 0 - 95% |
Heat dissipation | 1648.23 BTU/h |
Weight & dimensions | |
Width | 17.3" (440 mm) |
Depth | 16.9" (430 mm) |
Height | 1.73" (44 mm) |
Weight | 12.7 lbs (5.78 kg) |
D-Link DGS-1210-52MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Black 1U Power over Ethernet (PoE)
Length | 22 cm |
Width | 22 cm |
Height | 5.75 cm |
Weight | 1.000000 kgs |
