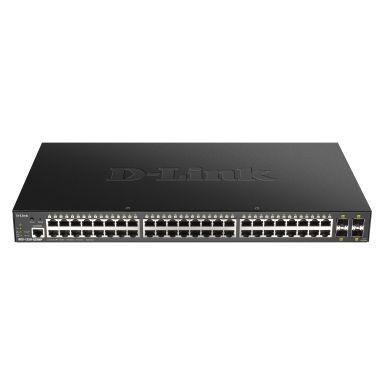

D-Link 48-port Gigabit Smart Managed Switch with 4 x 10G SFP+, 370Watts
In Stock
|
£803.06
£963.67 (Inc. VAT)
get it next day (UK Mainland Orders)
Management features
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
MIB support
RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Cloud-managed
No
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
No
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Console port
RJ-45
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Voice VLAN
IGMP snooping
Yes
Data transmission
Jumbo frames
12000
Number of static routes
124
Packet buffer memory
16 MB
MAC address table
32000 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
130.95 Mpps
Number of VLANs
4094
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
Access Control List (ACL) rules
768
Security algorithms
EAP, LEAP, PEAP, SSH, TTLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
DHCP features
DHCP client, DHCP server, DHCP snooping
Multicast features
Multicast support
Yes
Design
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Electromagnetic compatibility
CE A, VCCI A, FCC A, IC, BSMI
Rack mounting
Yes
Certification
CB, UL, BSMI, CCC
Performance
Noise level
51.2 dB
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
309053.1 h
Internal memory
2048 MB
Flash memory
64 MB
Packet buffer memory
16 MB
Harmonized System (HS) code
85176990
Power
Power consumption (max)
467.3 W
Power supply included
Yes
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
15.4 W
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE) ports quantity
48
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Heat dissipation
1512.676 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Voice VLAN
Weight & dimensions
Width
440 mm
Depth
430 mm
Height
44 mm
Weight
3.85 kg
Packaging data
Package width
393 mm
Package depth
563 mm
Package height
89 mm
Package weight
5.17 kg
Technical details
Product colour
Black
Noise level
51.2 dB
Mean time between failures (MTBF)
309053.1 h
Rack mounting
Yes
Shipping (inner) case width
47.8 cm
Shipping (inner) case net weight
22.9 kg
Shipping (inner) case length
58.5 cm
Shipping (inner) case height
42.8 cm
Products per shipping (inner) case
5 pc(s)
Products per pallet (sea)
80 pc(s)
Products per pallet (air)
80 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
184.7 cm
Pallet height (air)
184.7 cm
Pallet gross weight (sea)
456.1 kg
Pallet gross weight (air)
456.1 kg
Master (outer) cases per pallet (sea)
16 pc(s)
Master (outer) cases per pallet (air)
16 pc(s)
Shipping (inner) case gross weight
27.4 kg
Certificates
Electromagnetic compatibility
CE A, VCCI A, FCC A, IC, BSMI
Certification
CB, UL, BSMI, CCC
Memory
Packet buffer memory
16 MB
Memory type
DDR3-SDRAM
Internal memory
2048 MB
Flash memory
64 MB
Indication
LED indicators
Activity, Link, Power, Speed
Logistics data
Harmonized System (HS) code
85176990
D-Link 48-port Gigabit Smart Managed Switch with 4 x 10G SFP+, 370Watts
| Length | 56.3 cm |
| Width | 39.3 cm |
| Height | 8.9 cm |
| Weight | 5.17 kgs |
