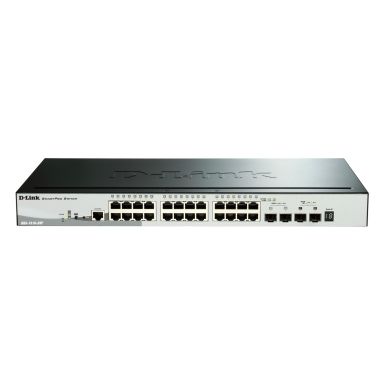

D-Link 28-Port Gigabit Stackable PoE Smart Managed Switch including 2 x 10G SFP+ & 2 x SFP

Switch type

Managed

Web-based management

Yes

System event log

Yes

Quality of Service (QoS) support

Yes

Multicast support

Yes

Switch layer

L3

SFP module slots quantity

2

SFP+ module slots quantity

2

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Cable types supported

Cat5, Cat5e

MAC address auto-learning supported

Yes

Networking standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x

Full duplex

Yes

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Port mirroring

Yes

Link aggregation

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

10G support

Yes

Auto-negotiation

Yes

IGMP snooping

Yes

Number of static routes

512

Packet buffer memory

1.5 MB

MAC address table

16000 entries

Switching capacity

92 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Forwarding rate

68.45 Mpps

Static port security

Yes

SSH/SSL support

Yes

MAC address filtering

Yes

IGMP snooping

Yes

Access Control List (ACL)

Yes

DHCP features

DHCP server, DHCP client

Multicast support

Yes

Safety

cUL, CB

Product colour

Black

Stackable

Yes

LED indicators

Activity, Link, PoE, Power

Rack mounting

Yes

Number of fans

2 fan(s)

Certification

CE, FCC, C-Tick, VCCI, BSMI, CCC

Physical stacking (units)

6

Virtual stacking (units)

32

Noise level

46.4 dB

Packet buffer memory

1.5 MB

Stackable

Yes

Auto-negotiation

Yes

Harmonized System (HS) code

85176990

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

238.7 W

Power connector

DC-in jack

Total Power over Ethernet (PoE) budget

193 W

Power over Ethernet (PoE) ports quantity

24

Power over Ethernet (PoE)

Yes

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-5 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Heat dissipation

813.967 BTU/h

VLAN support

Yes

Width

440 mm

Depth

250 mm

Height

44 mm

Weight

2.54 kg

Manual

Yes

Package width

348 mm

Package depth

511 mm

Package height

91 mm

Package weight

4 kg

Manual

Yes

Physical stacking (units)

6

Virtual stacking (units)

32

Product colour

Black

Stackable

Yes

Noise level

46.4 dB

Rack mounting

Yes

Shipping (inner) case width

29.6 cm

Shipping (inner) case net weight

9.27 kg

Shipping (inner) case length

52.9 cm

Shipping (inner) case height

38.3 cm

Products per shipping (inner) case

3 pc(s)

Products per pallet (sea)

120 pc(s)

Products per pallet (air)

120 pc(s)

Pallet gross width

120 cm

Pallet gross length

110 cm

Pallet height (sea)

2.05 m

Pallet height (air)

2.05 m

Pallet gross weight (sea)

533.9 kg

Pallet gross weight (air)

533.9 kg

Master (outer) cases per pallet (sea)

40 pc(s)

Master (outer) cases per pallet (air)

40 pc(s)

Shipping (inner) case gross weight

12.9 kg

Safety

cUL, CB

Certification

CE, FCC, C-Tick, VCCI, BSMI, CCC

Packet buffer memory

1.5 MB

LED indicators

Activity, Link, PoE, Power

Harmonized System (HS) code

85176990
