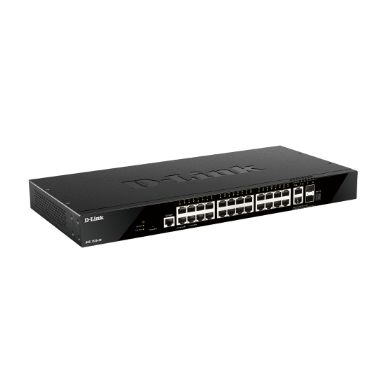

D-Link DGS-1520-28 network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black
In Stock
|
$233.72
$280.46 (Inc. VAT)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-FX-100BASE-TX-1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity
24
Fiber ports quantity
2
Fiber optic connector
SFP+
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-FX-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3ae-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3bz-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Head-of-line (HOL) blocking
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Data transmission
Multicast Listener Discovery (MLD) snooping
v1/v2
Jumbo frames
12288
MAC address table
16384 entries
Switching capacity
128 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
95.24 Mpps
Optical fiber
Fiber optic connector
SFP+
Performance
Stackable
Yes
Physical stacking (units)
8
Virtual stacking (units)
32
Noise level
51.8 dB
Mean time between failures (MTBF)
468252 h
Technical details
Physical stacking (units)
8
Virtual stacking (units)
32
Form factor
1U
Product colour
Black
Stackable
Yes
Noise level
51.8 dB
Mean time between failures (MTBF)
468252 h
Management features
Switch type
Managed
Web-based management
Yes
Switch layer
L3
Security
Loop protection
Yes
BPDU filtering/protection
Yes
IGMP snooping
Yes
MAC address entries
Static MAC address entries
DHCP features
DHCP snooping
Multicast features
Multicast Listener Discovery (MLD) snooping
v1/v2
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Routing protocols
OSPF-RIP-RIPng-VRRP
Certificates
Certification
CE Class A- FCC Class A- IC Class A- RCM Class A- VCCI Class A- BSMI Class A
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Activity- Link- Power- Speed
Certification
CE Class A- FCC Class A- IC Class A- RCM Class A- VCCI Class A- BSMI Class A
Indication
LED indicators
Activity- Link- Power- Speed
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power
Power consumption (max)
30.4 W
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 95%
Heat dissipation
103.7 BTU/h
Weight & dimensions
Width
207.4 mm
Depth
441 mm
Height
44 mm
Weight
2.33 kg
D-Link DGS-1520-28 network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black
| Length | 44.10 cm |
| Width | 20.74 cm |
| Height | 4.40 cm |
| Weight | 2.330000 kgs |
