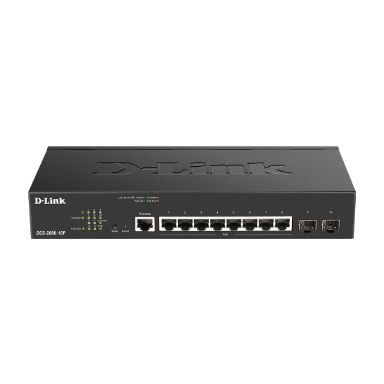

D-Link DGS-2000-10P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Half duplex
Yes
Virtual LAN features
Tagged VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Tagged VLAN
Data transmission
Multicast Listener Discovery (MLD) snooping
Yes
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Store-and-forward
Yes
Forwarding rate
14.88 Mpps
Performance
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Mean time between failures (MTBF)
277967 h
Internal memory
256 MB
Flash memory
32 MB
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
277967 h
Rack mounting
Yes
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Security
IP-MAC-Port binding
Yes
Static port security
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP relay, DHCP snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Memory
Packet buffer memory
4.1 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Design
Form factor
1U
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Rack mounting
Yes
Indication
LED indicators
Activity, Link, Power, Speed
Power
Power consumption (max)
81.9 W
Power supply included
Yes
Power consumption (typical)
2.5 W
DC input voltage
54 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
65 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
279.59 BTU/h
Weight & dimensions
Width
280 mm
Depth
126 mm
Height
44 mm
Weight
950 g
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
D-Link DGS-2000-10P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
