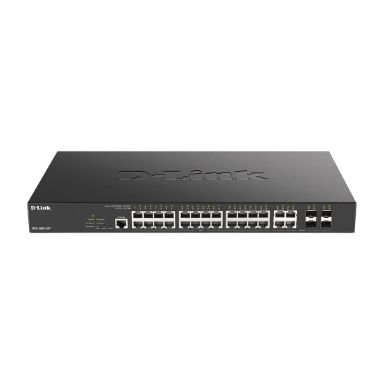

D-Link DGS-2000-28P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.3-IEEE 802.3ab-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Half duplex | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 41.7 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Memory type | DDR3-SDRAM |
| Mean time between failures (MTBF) | 469262 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 469262 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
| Security | |
| Static port security | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay-DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity- Link- Power- Speed |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication | |
| LED indicators | Activity- Link- Power- Speed |
| Power | |
| Power consumption (max) | 236.9 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 19.6 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 193 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 900.36 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.75 kg |
| Other features | |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
