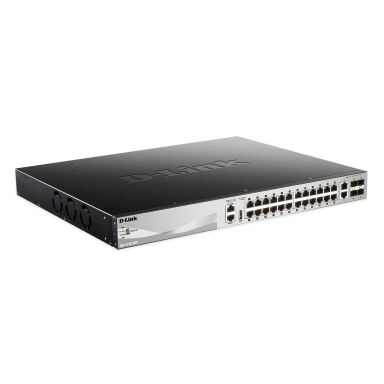

D-Link DGS-3130-30PS Managed L3 Gigabit Ethernet (10/100/1000) Black,Grey Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC 1213; RFC 4188; RFC 1157- 2571-2576; RFC 1907; RFC 1757- 2819; RFC 2021; RFC 1398- 1643- 1650- 2358- 2665; RFC 2674 802.1p 2233- 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674- 4363; RFC 1065- 1066- 1155- 1156- 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157- 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-10GBASE-T-100BASE-TX-1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity
1
Fiber optic connector
SFP+
Power connector
AC-in jack
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Copper ethernet cabling technology
10BASE-T-10GBASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1v-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3ah-IEEE 802.3at-IEEE 802.3az-IEEE 802.3x
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Private VLAN-Voice VLAN-Tagged VLAN-MAC address-based VLAN-Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Private VLAN-Voice VLAN-Tagged VLAN-MAC address-based VLAN-Port-based VLAN
Data transmission
Number of VLANs
4000
Packet buffer memory
2 MB
MAC address table
16384 entries
Switching capacity
168 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
125 Mpps
Optical fiber
Fiber optic connector
SFP+
Performance
Packet buffer memory
2 MB
Stackable
Yes
Physical stacking (units)
9
Virtual stacking (units)
32
Noise level
53.4 dB
Mean time between failures (MTBF)
409054 h
Telnet
Yes
sFlow
Yes
Power
Power connector
AC-in jack
Power consumption (max)
471.67 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Redundant power supply (RPS) support
Yes
Technical details
Physical stacking (units)
9
Virtual stacking (units)
32
Product colour
Black- Grey
Stackable
Yes
Noise level
53.4 dB
Mean time between failures (MTBF)
409054 h
Telnet
Yes
Shipping (inner) case width
37.4 cm
Shipping (inner) case net weight
19.5 kg
Shipping (inner) case length
46.8 cm
Shipping (inner) case height
62.6 cm
Quantity per shipping (inner) case
3 pc(s)
Quantity per pallet (sea)
54 pc(s)
Quantity per pallet (air)
54 pc(s)
Pallet width
120 cm
Pallet length
110 cm
Pallet height (sea)
2.01 m
Pallet height (air)
2.01 m
Pallet gross weight (sea)
399.8 kg
Pallet gross weight (air)
399.8 kg
Number of cartons per pallet (sea)
18 pc(s)
Number of cartons per pallet (air)
18 pc(s)
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN- MAC-based authentication- Port-based authentication
SSH/SSL support
Yes
Security algorithms
SNMP-SNMPv3-SSH-2-SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Root protection
Yes
Queue scheduling algorithms
SP- WRR+SP- Weighted Round Robin (WRR)
Password protection
Yes
DoS attack prevention
Yes
Access Control List (ACL) ingress
2048
Access Control List (ACL) egress
512
DHCP features
DHCP server-DHCP snooping-DHCP relay-DHCP client
Multicast features
Multicast support
Yes
Multicast features
Controllable multicast
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Virtual Router Redundancy Protocol (VRRP)
Yes
Routing protocols
RIP
Certificates
Safety
CB- cUL- BSMI- CCC
Certification
FCC A- CE A- VCCI A- IC- RCM- BSMI- CCC
Memory
Packet buffer memory
2 MB
Design
Safety
CB- cUL- BSMI- CCC
Product colour
Black- Grey
Stackable
Yes
LED indicators
Yes
Certification
FCC A- CE A- VCCI A- IC- RCM- BSMI- CCC
Number of fans
3 fan(s)
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1609.41 BTU/h
Weight & dimensions
Width
440 mm
Depth
350 mm
Height
44 mm
Weight
4.66 kg
Packaging data
Package width
450 mm
Package depth
595 mm
Package height
118 mm
Package weight
6.32 kg
D-Link DGS-3130-30PS Managed L3 Gigabit Ethernet (10/100/1000) Black,Grey Power over Ethernet (PoE)
| Length | 35.00 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 4.660000 kgs |
