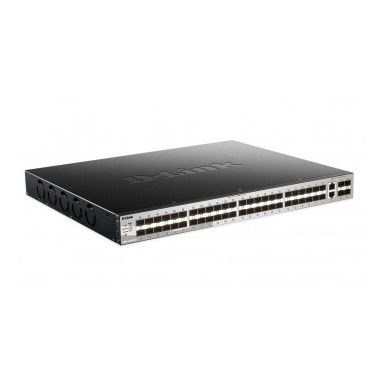

D-Link DGS-3130-54S Managed L3 10G Ethernet (100/1000/10000) Black,Grey
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213; RFC 4188; RFC 1157- 2571-2576; RFC 1907; RFC 1757- 2819; RFC 2021; RFC 1398- 1643- 1650- 2358- 2665; RFC 2674 802.1p 2233- 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674- 4363; RFC 1065- 1066- 1155- 1156- 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157- 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737 |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T |
| SFP module slots quantity | 48 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | SFP-SFP+ |
| Power connector | AC-in jack |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1v-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ad-IEEE 802.3ah-IEEE 802.3az-IEEE 802.3x |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN-Voice VLAN-Tagged VLAN-MAC address-based VLAN-Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Private VLAN-Voice VLAN-Tagged VLAN-MAC address-based VLAN-Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| Packet buffer memory | 4 MB |
| MAC address table | 16384 entries |
| Switching capacity | 216 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 161 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP-SFP+ |
| Performance | |
| Packet buffer memory | 4 MB |
| Stackable | Yes |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Noise level | 54 dB |
| Mean time between failures (MTBF) | 520861 h |
| Telnet | Yes |
| sFlow | Yes |
| Power | |
| Power connector | AC-in jack |
| Power consumption (max) | 131 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Technical details | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Product colour | Black- Grey |
| Stackable | Yes |
| Noise level | 54 dB |
| Mean time between failures (MTBF) | 520861 h |
| Telnet | Yes |
| Shipping (inner) case width | 37.4 cm |
| Shipping (inner) case net weight | 19 kg |
| Shipping (inner) case length | 46.8 cm |
| Shipping (inner) case height | 62.6 cm |
| Quantity per shipping (inner) case | 3 pc(s) |
| Quantity per pallet (sea) | 54 pc(s) |
| Quantity per pallet (air) | 54 pc(s) |
| Pallet width | 122 cm |
| Pallet length | 102 cm |
| Pallet height (sea) | 2.01 m |
| Pallet height (air) | 2.01 m |
| Pallet gross weight (sea) | 389.8 kg |
| Pallet gross weight (air) | 389.8 kg |
| Number of cartons per pallet (sea) | 18 pc(s) |
| Number of cartons per pallet (air) | 18 pc(s) |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN- MAC-based authentication- Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SNMP-SNMPv3-SSH-2-SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | SP- WRR+SP- Weighted Round Robin (WRR) |
| Password protection | Yes |
| DoS attack prevention | Yes |
| Access Control List (ACL) ingress | 2048 |
| Access Control List (ACL) egress | 512 |
| DHCP features | DHCP server-DHCP snooping-DHCP relay-DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | RIP |
| Certificates | |
| Safety | CB- cUL- BSMI- CCC |
| Certification | FCC A- CE A- VCCI A- IC- RCM- BSMI- CCC |
| Memory | |
| Packet buffer memory | 4 MB |
| Design | |
| Safety | CB- cUL- BSMI- CCC |
| Product colour | Black- Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Certification | FCC A- CE A- VCCI A- IC- RCM- BSMI- CCC |
| Number of fans | 5 fan(s) |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 446.99 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 4.52 kg |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 595 mm |
| Package height | 118 mm |
| Package weight | 6.32 kg |
D-Link DGS-3130-54S Managed L3 10G Ethernet (100/1000/10000) Black,Grey
