Management features | |
---|---|
Multicast support | Yes |
ARP inspection | Yes |
Switch type | Managed |
Web-based management | Yes |
System event log | Yes |
Quality of Service (QoS) support | Yes |
MIB support | RFC 1213; RFC 4188; RFC 1157- 2571-2576; RFC 1907; RFC 1757- 2819; RFC 2021; RFC 1398- 1643- 1650- 2358- 2665; RFC 2674 802.1p 2233- 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674- 4363; RFC 1065- 1066- 1155- 1156- 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157- 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737 |
Switch layer | L3 |
Ports & interfaces | |
Copper ethernet cabling technology | 10BASE-T-10GBASE-T-100BASE-TX-1000BASE-T |
I/O ports | 2 x 10GBASE-T |
SFP+ module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
USB 2.0 ports quantity | 1 |
Fiber optic connector | SFP+ |
Power connector | AC-in jack |
Network | |
IGMP snooping | Yes |
GARP VLAN Registration Protocol (GVRP) | Yes |
Copper ethernet cabling technology | 10BASE-T-10GBASE-T-100BASE-TX-1000BASE-T |
Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1v-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ad-IEEE 802.3ah-IEEE 802.3az-IEEE 802.3x |
Head-of-line (HOL) blocking | Yes |
VLAN support | Yes |
Spanning tree protocol | Yes |
Port mirroring | Yes |
Number of VLANs | 4000 |
Link aggregation | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
10G support | Yes |
Virtual LAN features | Private VLAN-Voice VLAN-Tagged VLAN-MAC address-based VLAN-Port-based VLAN |
Virtual LAN features | |
VLAN support | Yes |
Number of VLANs | 4000 |
Virtual LAN features | Private VLAN-Voice VLAN-Tagged VLAN-MAC address-based VLAN-Port-based VLAN |
Data transmission | |
Number of VLANs | 4000 |
Packet buffer memory | 4 MB |
MAC address table | 16384 entries |
Switching capacity | 216 Gbit/s |
Number of queues | 8 |
Jumbo frames support | Yes |
Forwarding rate | 161 Mpps |
Optical fiber | |
Fiber optic connector | SFP+ |
Performance | |
Packet buffer memory | 4 MB |
Stackable | Yes |
Physical stacking (units) | 9 |
Virtual stacking (units) | 32 |
Noise level | 51.9 dB |
Mean time between failures (MTBF) | 478258 h |
Telnet | Yes |
sFlow | Yes |
Power | |
Power connector | AC-in jack |
Power consumption (max) | 50.62 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Redundant power supply (RPS) support | Yes |
Technical details | |
Physical stacking (units) | 9 |
Virtual stacking (units) | 32 |
Product colour | Black- Grey |
Stackable | Yes |
Noise level | 51.9 dB |
Mean time between failures (MTBF) | 478258 h |
Telnet | Yes |
Shipping (inner) case width | 19.8 cm |
Shipping (inner) case net weight | 9.66 kg |
Shipping (inner) case length | 52.4 cm |
Shipping (inner) case height | 46 cm |
Quantity per shipping (inner) case | 2 pc(s) |
Quantity per pallet (sea) | 96 pc(s) |
Quantity per pallet (air) | 96 pc(s) |
Pallet width | 120 cm |
Pallet length | 110 cm |
Pallet height (sea) | 197.5 cm |
Pallet height (air) | 197.5 cm |
Pallet gross weight (sea) | 522.6 kg |
Pallet gross weight (air) | 522.6 kg |
Number of cartons per pallet (sea) | 48 pc(s) |
Number of cartons per pallet (air) | 48 pc(s) |
Security | |
Loop protection | Yes |
BPDU filtering/protection | Yes |
Authentication | Guest VLAN- MAC-based authentication- Port-based authentication |
SSH/SSL support | Yes |
Security algorithms | SNMP-SNMPv3-SSH-2-SSL/TLS |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Root protection | Yes |
Queue scheduling algorithms | SP- WRR+SP- Weighted Round Robin (WRR) |
Password protection | Yes |
DoS attack prevention | Yes |
Access Control List (ACL) ingress | 2048 |
Access Control List (ACL) egress | 512 |
DHCP features | DHCP server-DHCP snooping-DHCP relay-DHCP client |
Multicast features | |
Multicast support | Yes |
Multicast features | Controllable multicast |
Protocols | |
GARP VLAN Registration Protocol (GVRP) | Yes |
Virtual Router Redundancy Protocol (VRRP) | Yes |
Routing protocols | RIP |
Certificates | |
Safety | CB- cUL- BSMI- CCC |
Certification | FCC A- CE A- VCCI A- IC- RCM- BSMI- CCC |
Memory | |
Packet buffer memory | 4 MB |
Design | |
Safety | CB- cUL- BSMI- CCC |
Product colour | Black- Grey |
Stackable | Yes |
LED indicators | Yes |
Certification | FCC A- CE A- VCCI A- IC- RCM- BSMI- CCC |
Number of fans | 2 fan(s) |
Indication | |
LED indicators | Yes |
Mobile network | |
GARP VLAN Registration Protocol (GVRP) | Yes |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 10 - 90% |
Heat dissipation | 172.72 BTU/h |
Weight & dimensions | |
Width | 440 mm |
Depth | 290 mm |
Height | 44 mm |
Weight | 3.72 kg |
Packaging data | |
Package width | 427 mm |
Package depth | 506 mm |
Package height | 70 mm |
Package weight | 4.83 kg |
Other features | |
I/O ports | 2 x 10GBASE-T |

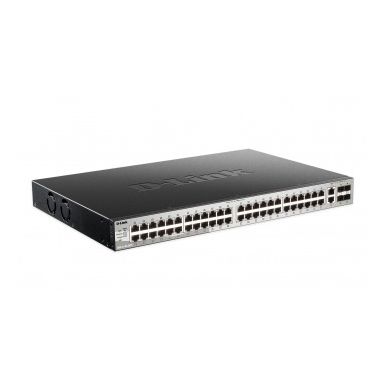

D-Link DGS-3130-54TS Managed L3 Gigabit Ethernet (10/100/1000) Black,Grey
