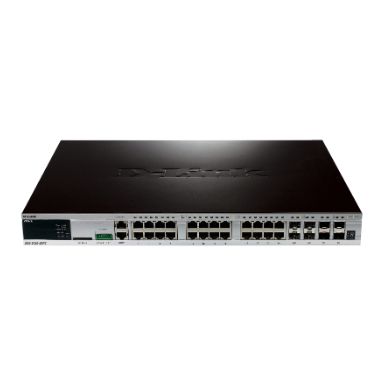

D-Link xStack Gigabit L2+ Stackable Managed Switches
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L2+
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ah, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
1000
Port mirroring
Yes
Number of VLANs
4000
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Data transmission
Number of VLANs
4000
Packet buffer memory
2 MB
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Yes
Performance
Packet buffer memory
2 MB
Noise level
52.8 dB
Mean time between failures (MTBF)
20619 h
Technical details
Noise level
52.8 dB
Mean time between failures (MTBF)
20619 h
Rack mounting
Yes
Shipping (inner) case width
33.6 cm
Shipping (inner) case net weight
12.8 kg
Shipping (inner) case length
55 cm
Shipping (inner) case height
60.3 cm
Products per shipping (inner) case
2 pc(s)
Products per pallet (sea)
36 pc(s)
Products per pallet (air)
36 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
194.4 cm
Pallet height (air)
194.4 cm
Pallet gross weight (sea)
335.8 kg
Pallet gross weight (air)
335.8 kg
Master (outer) cases per pallet (sea)
18 pc(s)
Master (outer) cases per pallet (air)
18 pc(s)
Shipping (inner) case gross weight
17.6 kg
Ports & interfaces
SFP module slots quantity
4
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Gigabit Ethernet (copper) ports quantity
24
SFP/SFP+ slots quantity
4
Console port
RJ-45
Security
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
2 MB
Design
Rack mounting
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
478 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
441 mm
Depth
380 mm
Height
44 mm
Weight
5.75 kg
Packaging data
Package width
530 mm
Package depth
568 mm
Package height
157 mm
Package weight
8.06 kg
