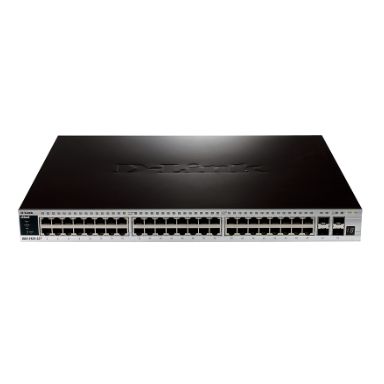

D-Link xStack Gigabit L2+ Stackable Managed Switches
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
SFP/SFP+ slots quantity
4
Network
IGMP snooping
Yes
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Performance
Packet buffer memory
2 MB
Stackable
Yes
Noise level
51.1 dB
Mean time between failures (MTBF)
255608 h
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Stackable
Yes
Noise level
51.1 dB
Mean time between failures (MTBF)
255608 h
Rack mounting
Yes
Shipping (inner) case width
33.6 cm
Shipping (inner) case net weight
11.6 kg
Shipping (inner) case length
55 cm
Shipping (inner) case height
60.3 cm
Products per shipping (inner) case
2 pc(s)
Products per pallet (sea)
36 pc(s)
Products per pallet (air)
36 pc(s)
Pallet gross width
120 cm
Pallet gross length
110 cm
Pallet height (sea)
194.4 cm
Pallet height (air)
194.4 cm
Pallet gross weight (sea)
331.7 kg
Pallet gross weight (air)
331.7 kg
Master (outer) cases per pallet (sea)
18 pc(s)
Master (outer) cases per pallet (air)
18 pc(s)
Shipping (inner) case gross weight
17.4 kg
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2
Data transmission
Packet buffer memory
2 MB
MAC address table
16000 entries
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Maximum data transfer rate
1 Gbit/s
Security
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Protocols
Management protocols
SNMP
Supported network protocols
IPv4/IPv6
Certificates
Safety
CB, cUL, LVD
Memory
Packet buffer memory
2 MB
Design
Safety
CB, cUL, LVD
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (typical)
81 W
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Heat dissipation
276.2 BTU/h
Weight & dimensions
Weight
5.07 kg
Packaging data
Package width
530 mm
Package depth
568 mm
Package height
157 mm
Package weight
7.95 kg
Logistics data
Harmonized System (HS) code
85176990
Other features
Management platform
CLI
Data transfer rate
1000 Mbit/s
Dimensions (WxDxH)
441 x 310 x 44 mm
Connectivity technology
Wired
Packet transfer speed
130.95
Networking features
Gigabit Ethernet
D-Link xStack Gigabit L2+ Stackable Managed Switches
