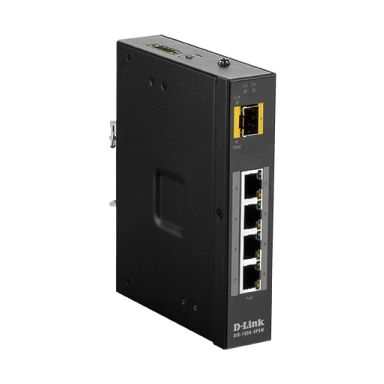

D-Link DIS‑100G‑5PSW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Traffic shaping
Yes
Switch type
Unmanaged
Switch layer
L2
Optical fiber
Fiber optic connector
LC
Performance
Auto-negotiation
Yes
Technical details
Product colour
Black
Shipping (inner) case width
38 cm
Shipping (inner) case net weight
7 kg
Shipping (inner) case length
39 cm
Shipping (inner) case height
24 cm
Quantity per shipping (inner) case
10 pc(s)
Quantity per pallet (sea)
480 pc(s)
Quantity per pallet (air)
300 pc(s)
Pallet width
110 cm
Pallet length
120 cm
Pallet height (sea)
2.06 m
Pallet height (air)
133.5 cm
Pallet gross weight (sea)
391.9 kg
Pallet gross weight (air)
251.3 kg
Number of cartons per pallet (sea)
48 pc(s)
Number of cartons per pallet (air)
30 pc(s)
Power over Ethernet (PoE)
Power protection features
Over current- Reverse polarity
Power over Ethernet (PoE) voltage range
54 - 58 V
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Ports & interfaces
SFP module slots quantity
1
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
LC
Network
Networking standards
IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Full duplex
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
9000
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
7.44 Mpps
Multicast features
Multicast support
Yes
Certificates
Electromagnetic compatibility
FCC 15- EN 61000-6-2- EN 61000-6-4- EN 61000-4-2- -3- -4- -5- -6 (3)
Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32- UL 61010-1- UL C1D2- CE- FCC- RoHS- WEEE
Design
Wall mountable
Yes
DIN rail mounting
Yes
Product colour
Black
LED indicators
LAN- PoE- Power
Electromagnetic compatibility
FCC 15- EN 61000-6-2- EN 61000-6-4- EN 61000-4-2- -3- -4- -5- -6 (3)
Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32- UL 61010-1- UL C1D2- CE- FCC- RoHS- WEEE
Indication
LED indicators
LAN- PoE- Power
Power
Power consumption (max)
120.2 W
Power protection features
Over current- Reverse polarity
DC input voltage
12 - 58 V
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
410.12 BTU/h
Weight & dimensions
Width
139 mm
Depth
29 mm
Height
107 mm
Weight
375 g
Packaging data
Package width
181 mm
Package depth
210 mm
Package height
75 mm
Package weight
700 g
D-Link DIS‑100G‑5PSW Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)
