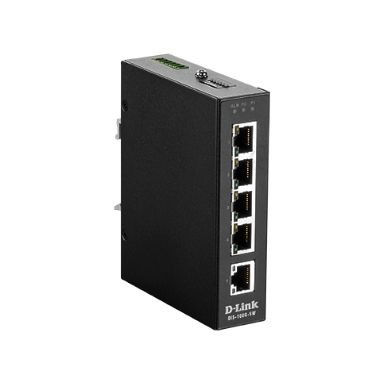

D-Link DIS?100G?5W Unmanaged L2 Gigabit Ethernet Black
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Traffic shaping
Yes
Switch type
Unmanaged
Switch layer
L2
Performance
Auto-negotiation
Yes
Technical details
Product colour
Black
Shipping (inner) case width
30.5 cm
Shipping (inner) case net weight
5 kg
Shipping (inner) case length
44 cm
Shipping (inner) case height
20.5 cm
Quantity per shipping (inner) case
10 pc(s)
Quantity per pallet (sea)
540 pc(s)
Quantity per pallet (air)
360 pc(s)
Pallet width
110 cm
Pallet length
120 cm
Pallet height (sea)
198 cm
Pallet height (air)
136.5 cm
Pallet gross weight (sea)
321.6 kg
Pallet gross weight (air)
220 kg
Number of cartons per pallet (sea)
54 pc(s)
Number of cartons per pallet (air)
36 pc(s)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3az-IEEE 802.3z
Full duplex
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
9000
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
7.44 Mpps
Multicast features
Multicast support
Yes
Certificates
Electromagnetic compatibility
FCC 15- EN 61000-6-2- EN 61000-6-4- EN 61000-4-2- -3- -4- -5- -6 (3)
Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1- CE- FCC- RoHS- WEEE
Design
Wall mountable
Yes
DIN rail mounting
Yes
Product colour
Black
LED indicators
LAN- Power
Electromagnetic compatibility
FCC 15- EN 61000-6-2- EN 61000-6-4- EN 61000-4-2- -3- -4- -5- -6 (3)
Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1- CE- FCC- RoHS- WEEE
Indication
LED indicators
LAN- Power
Power
Power consumption (max)
3.57 W
DC input voltage
12 - 58 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
12.18 BTU/h
Weight & dimensions
Width
112.2 mm
Depth
29.1 mm
Height
89.4 mm
Weight
300 g
Packaging data
Package width
140 mm
Package depth
178 mm
Package height
83 mm
Package weight
500 g
D-Link DIS?100G?5W Unmanaged L2 Gigabit Ethernet Black
