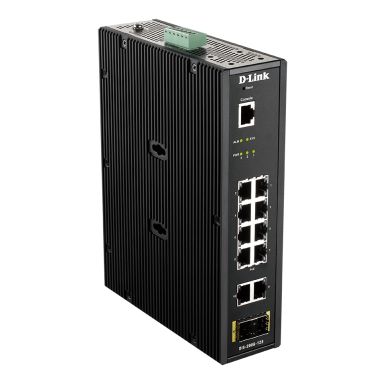

D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T-100BASE-TX-1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-T-100BASE-TX-1000BASE-T |
| Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Voice VLAN-Tagged VLAN-Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Voice VLAN-Tagged VLAN-Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 9216 |
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 17.85 Mpps |
| Performance | |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 276773 h |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 276773 h |
| Housing material | Metal |
| Rack mounting | Yes |
| Shipping (inner) case width | 37.2 cm |
| Shipping (inner) case net weight | 10.4 kg |
| Shipping (inner) case length | 40.9 cm |
| Shipping (inner) case height | 25.2 cm |
| Quantity per shipping (inner) case | 5 pc(s) |
| Quantity per pallet (sea) | 210 pc(s) |
| Quantity per pallet (air) | 120 pc(s) |
| Pallet width | 120 cm |
| Pallet length | 110 cm |
| Pallet height (sea) | 189.9 cm |
| Pallet height (air) | 114.3 cm |
| Pallet gross weight (sea) | 470.4 kg |
| Pallet gross weight (air) | 268.8 kg |
| Number of cartons per pallet (sea) | 42 pc(s) |
| Number of cartons per pallet (air) | 24 pc(s) |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Security | |
| Authentication | Port-based authentication |
| Security algorithms | 802.1x RADIUS-SSL/TLS |
| IGMP snooping | Yes |
| Queue scheduling algorithms | SPQ-Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3- SNTP- Telnet |
| Certificates | |
| Safety | UL60950-1 |
| Electromagnetic compatibility | CISPR 22- FCC Part 15B Class A |
| Certification | CE- FCC- BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Safety | UL60950-1 |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Electromagnetic compatibility | CISPR 22- FCC Part 15B Class A |
| Certification | CE- FCC- BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 10.26 W |
| DC input voltage | 12 - 48 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 35.01 BTU/h |
| Weight & dimensions | |
| Width | 171.2 mm |
| Depth | 48 mm |
| Height | 210 mm |
| Packaging data | |
| Package width | 217 mm |
| Package depth | 355 mm |
| Package height | 76 mm |
| Package weight | 2.07 kg |
D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
