£1044.42
£1253.30 (Inc. VAT)
![](https://miatlantic.com/pub/media/wysiwyg/Group_16.webp)
Management features
Multicast support
Yes
Traffic shaping
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Virtual LAN features
VLAN support
Yes
Number of VLANs
1024
Data transmission
Number of VLANs
1024
Jumbo frames
9000
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Optical fiber
Fiber optic connector
LC
Performance
Auto-negotiation
Yes
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Firmware upgradeable
Yes
Rack mounting
No
Shipping (inner) case width
40.5 cm
Shipping (inner) case net weight
18.6 kg
Shipping (inner) case length
69.5 cm
Shipping (inner) case height
27 cm
Products per shipping (inner) case
10 pc(s)
Products per pallet (sea)
280 pc(s)
Products per pallet (air)
200 pc(s)
Pallet gross width
110 cm
Pallet gross length
120 cm
Pallet height (sea)
2.02 m
Pallet height (air)
148.5 cm
Pallet gross weight (sea)
575 kg
Pallet gross weight (air)
415.6 kg
Master (outer) cases per pallet (sea)
28 pc(s)
Master (outer) cases per pallet (air)
20 pc(s)
Shipping (inner) case gross weight
19.9 kg
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
10
Fiber optic connector
LC
Network
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Number of VLANs
1024
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Multicast features
Multicast support
Yes
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Product colour
Black
Rack mounting
No
Power
Power consumption (typical)
14 W
DC input voltage
48 - 58 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range
54 - 58 V
Power over Ethernet (PoE) power per port
60 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
71 mm
Depth
154 mm
Height
128 mm
Weight
1.41 kg

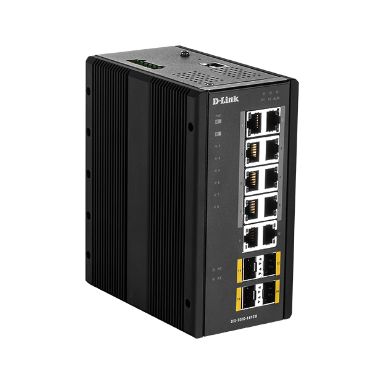

D-Link DIS-300G-14PSW Managed L2 Gigabit Ethernet Power over Ethernet (PoE) Black
