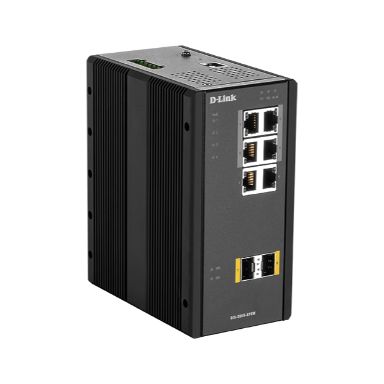

D-Link DIS?300G?8PSW Managed L2 Gigabit Ethernet Power over Ethernet (PoE) Black

Multicast support

Yes

Traffic shaping

Yes

Switch type

Managed

Web-based management

Yes

System event log

Yes

Quality of Service (QoS) support

Yes

MIB support

RFC 1757 RMON 1-2-3-9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Switch layer

L2

VLAN support

Yes

Number of VLANs

1024

Virtual LAN features

Tagged VLAN- Protocol-based VLAN- MAC address-based VLAN- Port-based VLAN- IP subnet–based VLAN

Number of VLANs

1024

Jumbo frames

9000

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Fiber optic connector

LC

Auto-negotiation

Yes

Firmware upgradeable

Yes

Harmonized System (HS) code

85176990

Product colour

Black

Firmware upgradeable

Yes

Rack mounting

No

Shipping (inner) case width

40.5 cm

Shipping (inner) case net weight

18.1 kg

Shipping (inner) case length

69.5 cm

Shipping (inner) case height

27 cm

Products per shipping (inner) case

10 pc(s)

Products per pallet (sea)

280 pc(s)

Products per pallet (air)

200 pc(s)

Pallet gross width

110 cm

Pallet gross length

120 cm

Pallet height (sea)

2.02 m

Pallet height (air)

148.5 cm

Pallet gross weight (sea)

559.4 kg

Pallet gross weight (air)

404.4 kg

Master (outer) cases per pallet (sea)

28 pc(s)

Master (outer) cases per pallet (air)

20 pc(s)

Shipping (inner) case gross weight

19.4 kg

Power protection features

Over current- Reverse polarity

Power over Ethernet (PoE) voltage range

54 - 58 V

Power over Ethernet (PoE) power per port

60 W

Power over Ethernet plus (PoE+) ports quantity

4

Total Power over Ethernet (PoE) budget

120 W

Power over Ethernet (PoE)

Yes

SFP module slots quantity

2

Basic switching RJ-45 Ethernet ports quantity

6

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber optic connector

LC

Networking standards

IEEE 802.1D- IEEE 802.1ab- IEEE 802.1ad- IEEE 802.1p- IEEE 802.1s- IEEE 802.1w- IEEE 802.3ad- IEEE 802.3af- IEEE 802.3at- IEEE 802.3x

Full duplex

Yes

VLAN support

Yes

Spanning tree protocol

Yes

Number of VLANs

1024

Link aggregation

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

10G support

No

Auto-negotiation

Yes

Virtual LAN features

Tagged VLAN- Protocol-based VLAN- MAC address-based VLAN- Port-based VLAN- IP subnet–based VLAN

Security algorithms

HTTPS- SNMP- SNMPv3- SSH

Queue scheduling algorithms

SPQ- Weighted Round Robin (WRR)

Authentication type

IEEE 802.1x- RADIUS

DHCP features

DHCP server- DHCP snooping- DHCP relay- DHCP client

Multicast support

Yes

Electromagnetic compatibility

FCC 15- EN 61000‑6‑2- EN 61000‑6‑4- EN 61000‑4‑2- ‑3- ‑4- ‑5- ‑6

Certification

IEC60068‑2‑6- IEC60068‑2‑27- IEC60068‑2‑32- UL 60950‑1- CE- FCC- RoHS- WEEE

Wall mountable

Yes

International Protection (IP) code

IP30

DIN rail mounting

Yes

Product colour

Black

LED indicators

Alarm- LAN- PoE- Power

Electromagnetic compatibility

FCC 15- EN 61000‑6‑2- EN 61000‑6‑4- EN 61000‑4‑2- ‑3- ‑4- ‑5- ‑6

Certification

IEC60068‑2‑6- IEC60068‑2‑27- IEC60068‑2‑32- UL 60950‑1- CE- FCC- RoHS- WEEE

Rack mounting

No

LED indicators

Alarm- LAN- PoE- Power

Power consumption (max)

265 W

Power protection features

Over current- Reverse polarity

Power consumption (typical)

14 W

DC input voltage

48 - 58 V

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Width

71 mm

Depth

154 mm

Height

128 mm

Weight

1.31 kg

Package width

195 mm

Package depth

242 mm

Package height

138 mm

Package weight

1.81 kg
