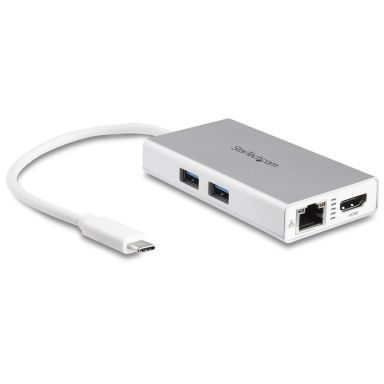

StarTech.com usb-c multiport adapter usb-c travel docking station

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

0

USB connector type

USB Type-A, USB Type-C

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Microphone in

No

Headphone outputs

0

DC-in jack

Yes

Connectivity technology

Wired

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

60 W

Full duplex

Yes

Auto MDI/MDI-X

Yes

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Wake-on-LAN ready

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

UASP support

Yes

Maximum digital resolution

4096 x 2160 pixels

Full duplex

Yes

Auto MDI/MDI-X

Yes

Product colour

Silver, White

Card reader integrated

No

Data transfer rate

5 Gbit/s

Certification

CE, FCC, TAA, REACH

Housing material

Plastic

Product colour

Silver, White

Data transfer rate

5 Gbit/s

Cable length

0.25 m

Harmonized System (HS) code

84733020

Compliance certificates

RoHS

Products per master (outer) case

40 pc(s)

Master (outer) case width

440 mm

Master (outer) case length

445 mm

Master (outer) case height

316 mm

Card reader integrated

No

Power source type

USB

Power supply

60 W

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Mac compatibility

Yes

Other operating systems supported

ChromeOS

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 65 °C

Operating relative humidity (H-H)

0 - 85%

Weight

64 g

Width

51 mm

Depth

96 mm

Height

16 mm

Package weight

193 g

Package width

147 mm

Package depth

213 mm

Package height

42 mm

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Product colour

Silver, White

Certification

CE, FCC, TAA, REACH

Package weight

193 g

Package width

147 mm

Package depth

213 mm

Package height

42 mm

Quick start guide

Yes

Certification

CE, FCC, TAA, REACH

Products per master (outer) case

40 pc(s)

Master (outer) case width

440 mm

Master (outer) case length

445 mm

Master (outer) case height

316 mm

Harmonized System (HS) code

84733020

Chipset

VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179

Cable length

0.25 m
