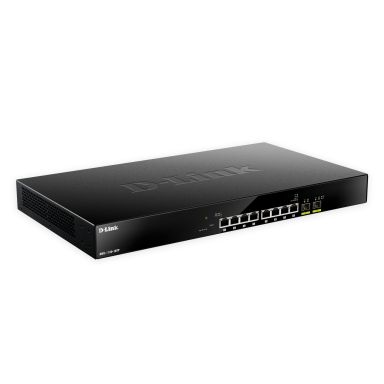

D-Link DMS-1100-10TP network switch Managed L2 Power over Ethernet (PoE) 1U Black
In Stock
|
$435.04
$522.05 (Inc. VAT)
Management features
Multicast support
Yes
Switch type
Managed
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
100BASE-TX-1000BASE-T
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Network
IGMP snooping
Yes
MLD entries
192
IGMP entries
192
Cable types supported
Cat5e
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Data transmission
Number of VLANs
4094
Jumbo frames
9216
Throughput
59.52 Mpps
MAC address table
16000 entries
Switching capacity
80 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Technical details
Form factor
1U
Product colour
Black
Mean time between failures (MTBF)
676329 h
Rack mounting
Yes
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Security
Security algorithms
SNMP-SSL/TLS
IGMP snooping
Yes
DoS attack prevention
Yes
IGMP entries
192
DHCP features
DHCP client
Multicast features
Multicast support
Yes
MLD entries
192
Design
Safety
cUL- CB- CE- CCC- BSMI
Form factor
1U
Product colour
Black
Rack mounting
Yes
Number of fans
1 fan(s)
Performance
Maximum cable length
100 m
Mean time between failures (MTBF)
676329 h
Power
Power consumption (max)
293.4 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
440 mm
Depth
250 mm
Height
44 mm
Weight
3.43 kg
D-Link DMS-1100-10TP network switch Managed L2 Power over Ethernet (PoE) 1U Black
| Length | 25.00 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 3.430000 kgs |
